CXSD6288 a dual-channel, constant on-time, and synchronous PWM controller which drives dual N-channel MOSFETs for each channel. CXSD6288 steps down high voltage of a battery to generate l

发布时间：2020-04-06 09:43:38 浏览次数：704 作者：嘉泰姆来源：1

摘要：CXSD6288 a dual-channel, constant on-time, and synchronous PWM controller which drives dual N-channel MOSFETs for each channel. CXSD6288 steps down high voltage of a battery to generate l

目录eKe嘉泰姆

1.产品概述 2.产品特点
3.应用范围 4.下载产品资料PDF文档
5.产品封装图 6.电路原理图
7.功能概述 8.相关产品eKe嘉泰姆

一,产品概述(General Description) eKe嘉泰姆

The CXSD6288 is a dual-channel, constant on-time, and
synchronous PWM controller which drives dual N-channel MOSFETs
for each channel. The CXSD6288 steps down high voltage of a battery
to generate low-voltage chipset or RAM supplies in notebook computers.
The CXSD6288 provides excellent transient response and accurate DC voltage output in either PFM or PWM mode. In PFM mode, the TMA7108 provides very high efficiency over light to heavy loads with loading-modu-
lated switching frequencies. The Forced-PWM mode works nearly at constant frequency for low-noise requirements.
The CXSD6288 is equipped with accurate current-limit,output under-voltag, and output over-voltage protections,perfect for NB applications. A Power-On-Reset function monitors the voltage on V CC to prevent wrong opera-tion during power on. A soft-start ramps up the output voltage with programmable slew rate to reduce the start-up current. A soft-stop function actively discharges the output capacitors with controlled reverse inductor current. At the end of the soft-stop, the CXSD6288 forces
LGATE high to prevent over-voltage in shutdown. The CXSD6288 has individual enable controls for each channel. Pulling both EN pin low shuts down the whole chip with low quiescent current close to zero.
The CXSD6288 is available in SSOP-28 and QFN4x4-24 packages.
二.产品特点(Features)eKe嘉泰姆

1.）Adjustable Output Voltage up to 5.5V
- 0.9V Reference Voltage
- ±1% Accuracy Over Temperature
2.）Operates from an Input Battery Voltage Range of
3.）5V to 24V or from 3.3V/5V System Rail
4.）Power-On-Reset Monitoring on VCC Pin
Selectable Forced PWM or Automatic PFM/PWM Mode
5.）Constant-On-Time Control Scheme
- Switching Frequency Compensation for PWM Mode
- Constant Switching Frequency (CH1: 345kHz,
CH2: 255KHz) in PWM Mode with DC Output Current
6.）Excellent Line and Load Transient Responses
7.）Adjustable Soft-Start and Soft-Stop
8.）Power-Good Outputs for both Channels
9.）Adjustable Current-Limit Protection
- Using Sense Resistor or MOSFET’s RDS(ON)
10.）115% Over-Voltage Protection
- No Negative Output Voltage Occurred
11.）70% Under-Voltage Protection
12.）Adaptive Dead-Time Control
- Sensing G-to-S Voltage of Power MOSFETs
13.）Shutdown Control for both Channels
14.）28-pin SSOP (SSOP-28) and 4mmx4mm 24-lead
QFN (QFN4x4-24) Packages
15.）Lead Free and Green Devices Available
三,应用范围 (Applications)eKe嘉泰姆

Note Book Computers
- Chipset/RAM Supplies as low as 0.9V
- 1.8V and 2.5V Supplies
Step-Down Converters Requiring High Efficiency
四.下载产品资料PDF文档 eKe嘉泰姆

需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！eKe嘉泰姆

eKe嘉泰姆

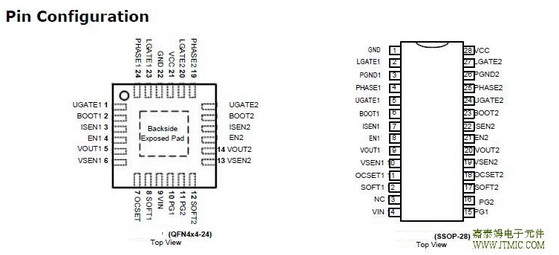

五,产品封装图 (Package)eKe嘉泰姆

eKe嘉泰姆

六.电路原理图eKe嘉泰姆

七,功能概述eKe嘉泰姆

Layout Consideration (Cont.)
· Keep the switching nodes (UGATEx, LGATEx, BOOTx,PHASEx, and ISENx) away from sensitive small sig-
nal nodes since these nodes are fast moving signals.Therefore, keep traces to these nodes as short as
possible and there should be no other weak signal traces in parallel with theses traces on any layer.
· The signals going through theses traces have both high dv/dt and high di/dt, with high peak charging and
discharging current. The traces from the gate drivers to the MOSFETs (UGATEx and LGATEx) should be short
and wide.
· Place the source of the high-side MOSFET and the drain of the low-side MOSFET as close as possible.
Minimizing the impedance with wide layout plane between the two pads reduces the voltage bounce of
the node.
· The ISENx trace should be a separate trace, and independently go to the drain terminal of the low-side
MOSFET. The current sense resistor should be close to ISENx pin. The loop formed by the bottom MOSFET,
output inductor, and output capacitor, should be very small. The source of the bottom MOSFET should tie
to the negative side of the output capacitor in order for the ISENx pin to get the voltage drop on the RDS(ON).
· Decoupling capacitor, compensation component,the resistor dividers, boot capacitors, and soft-start
capacitors should be close their pins. (For example,place the decoupling ceramic capacitor near the drain
of the high-side MOSFET as close as possible. The bulk capacitors are also placed near the drain).
· The input capacitor should be near the drain of the high-side MOSFET; the high quality ceramic
decoupling capacitor can be put close to the VCC and GND pins; the output capacitor should be near the
loads. The input capacitor GND should be close to the output capacitor GND and the low-side MOSFET
GND.
· The drain of the MOSFETs (VIN and PHASEx nodes) should be a large plane for heat sinking. And
PHASEx pin traces are also the return path for UGATEx. Connect these pins to the respective
converter’s high-side MOSFET source.
The CXSD6288 uses ripple mode control. Build the resistor divider close to the VSENx pin so that the
high impedance trace is shorter. The VSENx pin traces can’t be closed to the switching signal traces (UGATEx,
LGATEx, BOOTx, PHASEx, and ISENx).
The PGNDx trace should be a seperate trace, and inpendently go to the source of the low-side MOSFET.
For QFN4x4-24 package only, the thermal pad is the PGND of the dual channels. The sources of the both
channels’ low-side MOSFETs should be near the PGND respectively.
eKe嘉泰姆

八,相关产品 更多同类产品...... eKe嘉泰姆

Switching Regulator > Buck ControllereKe嘉泰姆
Part_No eKe嘉泰姆	Package eKe嘉泰姆	ArchieKe嘉泰姆 tectueKe嘉泰姆	PhaseeKe嘉泰姆	No.ofeKe嘉泰姆 PWMeKe嘉泰姆 OutputeKe嘉泰姆	Output eKe嘉泰姆 CurrenteKe嘉泰姆 (A) eKe嘉泰姆	InputeKe嘉泰姆 Voltage (V) eKe嘉泰姆		ReferenceeKe嘉泰姆 VoltageeKe嘉泰姆 (V) eKe嘉泰姆	Bias eKe嘉泰姆 VoltageeKe嘉泰姆 (V) eKe嘉泰姆	QuiescenteKe嘉泰姆 CurrenteKe嘉泰姆 (uA) eKe嘉泰姆
Part_No eKe嘉泰姆	Package eKe嘉泰姆	ArchieKe嘉泰姆 tectueKe嘉泰姆	PhaseeKe嘉泰姆	No.ofeKe嘉泰姆 PWMeKe嘉泰姆 OutputeKe嘉泰姆	Output eKe嘉泰姆 CurrenteKe嘉泰姆 (A) eKe嘉泰姆	mineKe嘉泰姆	maxeKe嘉泰姆	ReferenceeKe嘉泰姆 VoltageeKe嘉泰姆 (V) eKe嘉泰姆	Bias eKe嘉泰姆 VoltageeKe嘉泰姆 (V) eKe嘉泰姆	QuiescenteKe嘉泰姆 CurrenteKe嘉泰姆 (uA) eKe嘉泰姆
CXSD6273eKe嘉泰姆	SOP-14eKe嘉泰姆 QSOP-16eKe嘉泰姆 QFN4x4-16eKe嘉泰姆	VM eKe嘉泰姆	1 eKe嘉泰姆	1 eKe嘉泰姆	30eKe嘉泰姆	2.9 eKe嘉泰姆	13.2eKe嘉泰姆	0.9eKe嘉泰姆	12 eKe嘉泰姆	8000eKe嘉泰姆
CXSD6274eKe嘉泰姆	SOP-8eKe嘉泰姆	VM eKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	20eKe嘉泰姆	2.9 eKe嘉泰姆	13.2 eKe嘉泰姆	0.8eKe嘉泰姆	12eKe嘉泰姆	5000eKe嘉泰姆
CXSD6274CeKe嘉泰姆	SOP-8eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	20eKe嘉泰姆	2.9eKe嘉泰姆	13.2eKe嘉泰姆	0.8eKe嘉泰姆	12eKe嘉泰姆	5000eKe嘉泰姆
CXSD6275eKe嘉泰姆	QFN4x4-24eKe嘉泰姆	VMeKe嘉泰姆	2eKe嘉泰姆	1eKe嘉泰姆	60eKe嘉泰姆	3.1eKe嘉泰姆	13.2eKe嘉泰姆	0.6eKe嘉泰姆	12eKe嘉泰姆	5000eKe嘉泰姆
CXSD6276eKe嘉泰姆	SOP-8eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	20eKe嘉泰姆	2.2eKe嘉泰姆	13.2eKe嘉泰姆	0.8eKe嘉泰姆	5~12eKe嘉泰姆	2100eKe嘉泰姆
CXSD6276AeKe嘉泰姆	SOP-8eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	20eKe嘉泰姆	2.2eKe嘉泰姆	13.2eKe嘉泰姆	0.8eKe嘉泰姆	5~12eKe嘉泰姆	2100eKe嘉泰姆
CXSD6277/A/BeKe嘉泰姆	SOP8\|TSSOP8eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	5eKe嘉泰姆	5eKe嘉泰姆	13.2eKe嘉泰姆	1.25\|0.8eKe嘉泰姆	5~12eKe嘉泰姆	3000eKe嘉泰姆
CXSD6278eKe嘉泰姆	SOP-8eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	10eKe嘉泰姆	3.3eKe嘉泰姆	5.5eKe嘉泰姆	0.8eKe嘉泰姆	5eKe嘉泰姆	2100eKe嘉泰姆
CXSD6279BeKe嘉泰姆	SOP-14eKe嘉泰姆	VM eKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	10eKe嘉泰姆	5eKe嘉泰姆	13.2eKe嘉泰姆	0.8eKe嘉泰姆	12eKe嘉泰姆	2000eKe嘉泰姆
CXSD6280eKe嘉泰姆	TSSOP-24eKe嘉泰姆 \|QFN5x5-32eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	20eKe嘉泰姆	5eKe嘉泰姆	13.2eKe嘉泰姆	0.6eKe嘉泰姆	5~12eKe嘉泰姆	4000eKe嘉泰姆
CXSD6281NeKe嘉泰姆	SOP14eKe嘉泰姆 QSOP16eKe嘉泰姆 QFN-16eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	30eKe嘉泰姆	2.9eKe嘉泰姆	13.2eKe嘉泰姆	0.9eKe嘉泰姆	12eKe嘉泰姆	4000eKe嘉泰姆
CXSD6282eKe嘉泰姆	SOP-14eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	30eKe嘉泰姆	2.2eKe嘉泰姆	13.2eKe嘉泰姆	0.6eKe嘉泰姆	12eKe嘉泰姆	5000eKe嘉泰姆
CXSD6282AeKe嘉泰姆	SOP-14eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	30eKe嘉泰姆	2.2eKe嘉泰姆	13.2eKe嘉泰姆	0.6eKe嘉泰姆	12eKe嘉泰姆	5000eKe嘉泰姆
CXSD6283eKe嘉泰姆	SOP-14eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	25eKe嘉泰姆	2.2eKe嘉泰姆	13.2eKe嘉泰姆	0.8eKe嘉泰姆	12eKe嘉泰姆	5000eKe嘉泰姆
CXSD6284/AeKe嘉泰姆	LQFP7x7 48eKe嘉泰姆 TQFN7x7-48eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	6eKe嘉泰姆	0.015eKe嘉泰姆	1.4eKe嘉泰姆	6.5eKe嘉泰姆	-eKe嘉泰姆	5eKe嘉泰姆	1800eKe嘉泰姆
CXSD6285eKe嘉泰姆	TSSOP-24PeKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	20eKe嘉泰姆	2.97eKe嘉泰姆	5.5eKe嘉泰姆	0.8eKe嘉泰姆	5~12eKe嘉泰姆	5000eKe嘉泰姆
CXSD6286eKe嘉泰姆	SOP-14eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	10eKe嘉泰姆	5eKe嘉泰姆	13.2eKe嘉泰姆	0.8eKe嘉泰姆	12eKe嘉泰姆	3000eKe嘉泰姆
CXSD6287eKe嘉泰姆	SOP-8-P\|DIP-8eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	30eKe嘉泰姆	2.9eKe嘉泰姆	13.2eKe嘉泰姆	1.2eKe嘉泰姆	12eKe嘉泰姆	3000eKe嘉泰姆
CXSD6288eKe嘉泰姆	SSOP28eKe嘉泰姆 QFN4x4-24eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	20eKe嘉泰姆	5eKe嘉泰姆	24eKe嘉泰姆	0.9eKe嘉泰姆	5eKe嘉泰姆	1200eKe嘉泰姆
CXSD6289eKe嘉泰姆	SOP-20eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	20eKe嘉泰姆	2.2eKe嘉泰姆	13.2eKe嘉泰姆	0.6eKe嘉泰姆	5~12eKe嘉泰姆	4000eKe嘉泰姆
CXSD6290eKe嘉泰姆	SOP8\|DFN3x3-10eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	-eKe嘉泰姆	-eKe嘉泰姆	-eKe嘉泰姆	-eKe嘉泰姆	5~12eKe嘉泰姆	550eKe嘉泰姆
CXSD6291HCeKe嘉泰姆	DIP8\|SOP-8eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	1.2eKe嘉泰姆	9eKe嘉泰姆	24eKe嘉泰姆	5eKe嘉泰姆	9 ~ 24eKe嘉泰姆
CXSD6292eKe嘉泰姆	SSOP16eKe嘉泰姆 QFN4x4-16eKe嘉泰姆 TQFN3x3-16eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	25eKe嘉泰姆	3eKe嘉泰姆	25eKe嘉泰姆	0.6eKe嘉泰姆	5eKe嘉泰姆	1700eKe嘉泰姆
CXSD6293eKe嘉泰姆	TDFN3x3-10eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	25eKe嘉泰姆	3eKe嘉泰姆	25eKe嘉泰姆	0.5eKe嘉泰姆	5eKe嘉泰姆	350eKe嘉泰姆
CXSD6294eKe嘉泰姆	QFN4x4-24eKe嘉泰姆	CMeKe嘉泰姆	2eKe嘉泰姆	1eKe嘉泰姆	40eKe嘉泰姆	4.5eKe嘉泰姆	13.2eKe嘉泰姆	0.6eKe嘉泰姆	5~12eKe嘉泰姆	4000eKe嘉泰姆
CXSD6295eKe嘉泰姆	SOP8PeKe嘉泰姆 TDFN3x3-10eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	20eKe嘉泰姆	3eKe嘉泰姆	13.2eKe嘉泰姆	0.8eKe嘉泰姆	5~12eKe嘉泰姆	2500eKe嘉泰姆
CXSD6296A\|B\|C\|DeKe嘉泰姆	SOP8PeKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	25eKe嘉泰姆	3eKe嘉泰姆	13.2eKe嘉泰姆	0.6\|0.8eKe嘉泰姆	5~12eKe嘉泰姆	1200eKe嘉泰姆
CXSD6297eKe嘉泰姆	TDFN3x3-10eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	25eKe嘉泰姆	4eKe嘉泰姆	13.2eKe嘉泰姆	0.8eKe嘉泰姆	5~12eKe嘉泰姆	2000eKe嘉泰姆
CXSD6298eKe嘉泰姆	TDFN3x3-10eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	25eKe嘉泰姆	4.5eKe嘉泰姆	25eKe嘉泰姆	0.6eKe嘉泰姆	5~12eKe嘉泰姆	80eKe嘉泰姆
CXSD6299\|AeKe嘉泰姆	SOP-8PeKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	25eKe嘉泰姆	4.5eKe嘉泰姆	13.2eKe嘉泰姆	0.8eKe嘉泰姆	5~12eKe嘉泰姆	16000eKe嘉泰姆
CXSD62100eKe嘉泰姆	TQFN3x3-10eKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	25eKe嘉泰姆	4.5eKe嘉泰姆	13.2eKe嘉泰姆	0.6eKe嘉泰姆	5~12eKe嘉泰姆	2500eKe嘉泰姆
CXSD62101\|LeKe嘉泰姆	TDFN3x3-10eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	30eKe嘉泰姆	3eKe嘉泰姆	25eKe嘉泰姆	0.8eKe嘉泰姆	5~12eKe嘉泰姆	2000eKe嘉泰姆
CXSD62102eKe嘉泰姆	TQFN3x3-16eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	30eKe嘉泰姆	1.8eKe嘉泰姆	28eKe嘉泰姆	0.6eKe嘉泰姆	5eKe嘉泰姆	600eKe嘉泰姆
CXSD62102AeKe嘉泰姆	TQFN 3x3 16eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	30eKe嘉泰姆	1.8eKe嘉泰姆	28eKe嘉泰姆	0.6eKe嘉泰姆	5eKe嘉泰姆	600eKe嘉泰姆
CXSD62103eKe嘉泰姆	QFN4x4-24eKe嘉泰姆	VMeKe嘉泰姆	2eKe嘉泰姆	1eKe嘉泰姆	50eKe嘉泰姆	4.5eKe嘉泰姆	13.2eKe嘉泰姆	0.6eKe嘉泰姆	5~12eKe嘉泰姆	5000eKe嘉泰姆
CXSD62104eKe嘉泰姆	TQFN4x4-24eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	15eKe嘉泰姆	6eKe嘉泰姆	25eKe嘉泰姆	2eKe嘉泰姆	NeKe嘉泰姆	550eKe嘉泰姆
CXSD62105eKe嘉泰姆	TQFN4x4-24eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	15eKe嘉泰姆	6eKe嘉泰姆	25eKe嘉泰姆	2eKe嘉泰姆	NeKe嘉泰姆	550eKe嘉泰姆
CXSD62106\|AeKe嘉泰姆	TQFN4x4-4eKe嘉泰姆 TQFN3x3-20eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	20eKe嘉泰姆	3eKe嘉泰姆	28eKe嘉泰姆	0.75eKe嘉泰姆	5eKe嘉泰姆	800eKe嘉泰姆
CXSD62107eKe嘉泰姆	TQFN3x3-16eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	20eKe嘉泰姆	1.8eKe嘉泰姆	28eKe嘉泰姆	0.75eKe嘉泰姆	5eKe嘉泰姆	400eKe嘉泰姆
CXSD62108eKe嘉泰姆	QFN3.5x3.5-14eKe嘉泰姆 TQFN3x3-16eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	20eKe嘉泰姆	1.8eKe嘉泰姆	28eKe嘉泰姆	0.75eKe嘉泰姆	5eKe嘉泰姆	400eKe嘉泰姆
CXSD62109eKe嘉泰姆	TQFN3x3-16eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	20eKe嘉泰姆	1.8eKe嘉泰姆	28eKe嘉泰姆	0.75eKe嘉泰姆	5eKe嘉泰姆	400eKe嘉泰姆
CXSD62110eKe嘉泰姆	QFN3x3-20eKe嘉泰姆 TQFN3x3-16eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	20eKe嘉泰姆	3eKe嘉泰姆	28eKe嘉泰姆	1.8\|1.5\|0.5eKe嘉泰姆	5eKe嘉泰姆	740eKe嘉泰姆
CXSD62111eKe嘉泰姆	TQFN4x4-24eKe嘉泰姆 \|QFN3x3-20eKe嘉泰姆	CMeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	15eKe嘉泰姆	5eKe嘉泰姆	28eKe嘉泰姆	0.5eKe嘉泰姆	NeKe嘉泰姆	3000eKe嘉泰姆
CXSD62112eKe嘉泰姆	TDFN3x3-10eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	20eKe嘉泰姆	1.8eKe嘉泰姆	28eKe嘉泰姆	0.5eKe嘉泰姆	5eKe嘉泰姆	250eKe嘉泰姆
CXSD62113\|CeKe嘉泰姆	TQFN3x3-20eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	15eKe嘉泰姆	6eKe嘉泰姆	25eKe嘉泰姆	2eKe嘉泰姆	NeKe嘉泰姆	550eKe嘉泰姆
CXSD62113EeKe嘉泰姆	TQFN 3x3 20eKe嘉泰姆	COTeKe嘉泰姆	2eKe嘉泰姆	2eKe嘉泰姆	11eKe嘉泰姆	6eKe嘉泰姆	25eKe嘉泰姆	2eKe嘉泰姆	NeKe嘉泰姆	550eKe嘉泰姆
CXSD62114eKe嘉泰姆	TQFN3x3-20eKe嘉泰姆	COTeKe嘉泰姆	2eKe嘉泰姆	2eKe嘉泰姆	11eKe嘉泰姆	5.5eKe嘉泰姆	25eKe嘉泰姆	2eKe嘉泰姆	NeKe嘉泰姆	280eKe嘉泰姆
CXSD62115eKe嘉泰姆	QFN4x4-24eKe嘉泰姆	VMeKe嘉泰姆	2eKe嘉泰姆	1eKe嘉泰姆	60eKe嘉泰姆	3.1eKe嘉泰姆	13.2eKe嘉泰姆	0.85eKe嘉泰姆	12eKe嘉泰姆	5000eKe嘉泰姆
CXSD62116A\|B\|CeKe嘉泰姆	SOP-8PeKe嘉泰姆	VMeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	20eKe嘉泰姆	2.9eKe嘉泰姆	13.2eKe嘉泰姆	0.8eKe嘉泰姆	12eKe嘉泰姆	16000eKe嘉泰姆
CXSD62117eKe嘉泰姆	SOP-20eKe嘉泰姆	VMeKe嘉泰姆	2eKe嘉泰姆	2eKe嘉泰姆	30eKe嘉泰姆	10eKe嘉泰姆	13.2eKe嘉泰姆	1eKe嘉泰姆	12eKe嘉泰姆	5000eKe嘉泰姆
CXSD62118eKe嘉泰姆	TDFN3x3-10eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	1eKe嘉泰姆	25eKe嘉泰姆	1.8eKe嘉泰姆	28eKe嘉泰姆	0.7eKe嘉泰姆	5eKe嘉泰姆	250eKe嘉泰姆
CXSD62119eKe嘉泰姆	TQFN3x3-20eKe嘉泰姆	COTeKe嘉泰姆	2eKe嘉泰姆	1eKe嘉泰姆	40eKe嘉泰姆	1.8eKe嘉泰姆	25eKe嘉泰姆	REFIN SettingeKe嘉泰姆	5eKe嘉泰姆	700eKe嘉泰姆
CXSD62120eKe嘉泰姆	QFN 3x3 20eKe嘉泰姆 TQFN 3x3 16eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	20eKe嘉泰姆	3eKe嘉泰姆	28eKe嘉泰姆	1.8\|1.5 1.35\|1.2 0.5eKe嘉泰姆	5eKe嘉泰姆	800eKe嘉泰姆
CXSD62121AeKe嘉泰姆	TQFN3x3 20eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	15eKe嘉泰姆	3eKe嘉泰姆	28eKe嘉泰姆	0.75eKe嘉泰姆	5eKe嘉泰姆	220eKe嘉泰姆
CXSD62121BeKe嘉泰姆	TQFN3x3 20eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	15eKe嘉泰姆	3eKe嘉泰姆	28eKe嘉泰姆	0.75eKe嘉泰姆	5eKe嘉泰姆	220eKe嘉泰姆
CXSD62121eKe嘉泰姆	TQFN3x3-20eKe嘉泰姆	COTeKe嘉泰姆	1eKe嘉泰姆	2eKe嘉泰姆	20eKe嘉泰姆	3eKe嘉泰姆	28eKe嘉泰姆	0.75eKe嘉泰姆	5eKe嘉泰姆	180eKe嘉泰姆
