CXAS42192是一个CMOS模拟集成电路，配置为两个4通道多路复用器。这种CMOS器件可以工作在2.5V到5.5V的单电源。每个开关都能处理轨对轨模拟信号。在+25℃时，关断漏电流仅为1nA（典型值）。所有数字输入可支持1.8V逻辑控制I/O。
CXAS42192有绿色SOIC-16、SSOP-16、TSSOP-16和TQFN-3×3-16L包装。它在-40℃到+85℃的环境温度范围内工作。
•电阻保证
48Ω（典型值），带+5V电源
•确保通道之间的电阻匹配
•在+25℃时，低关断泄漏电流1nA（典型值）
•在+25℃时，低漏电流1nA（典型值）
•A、B控制销的最佳上升时间和下降时间减少时钟馈通效应
•2.5V至5.5V单电源操作
•1.8V逻辑兼容
•低失真：0.7%（RL=600Ω，f=20Hz至20kHz）
•高关隔离度：-83dB（RL=50Ω，f=1MHz）
•低串扰：-110dB（f=1MHz）
-
[ CXAS42192 ]
目录
7.相关产品
产品概述 返回TOP
The CXAS42192 is a CMOS analog IC configured as two 4-channel multiplexers. This CMOS device can operate from 2.5V to 5.5V single supplies. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA (TYP) at +25℃.
All digital inputs can support 1.8V logic control I/O.
The CXAS42192 is available in Green SOIC-16, SSOP-16, TSSOP-16 and TQFN-3×3-16L packages. It operates over an ambient temperature range of -40℃ to +85℃.
产品特点 返回TOP
• Guaranteed On-Resistance
48Ω (TYP) with +5V Supply
• Guaranteed On-Resistance Match Between Channels
• Low Off-Leakage Current 1nA (TYP) at +25℃
• Low On-Leakage Current 1nA (TYP) at +25℃
• Optimized Rise Time and Fall Time of A, B Control Pins
to Reduce Clock Feedthrough Effect
• 2.5V to 5.5V Single-Supply Operation
• 1.8V Logic Compatible
• Low Distortion: 0.7% (RL = 600Ω, f = 20Hz to 20kHz)
• High Off-Isolation: -83dB (RL = 50Ω, f = 1MHz)
• Low Crosstalk: -110dB (f = 1MHz)
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-16, SSOP-16, TSSOP-16 and
TQFN-3×3-16L Packages
应用范围 返回TOP
Battery-Operated Equipment
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communications Circuits
Automotive
技术规格书（产品PDF) 返回TOP
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持！

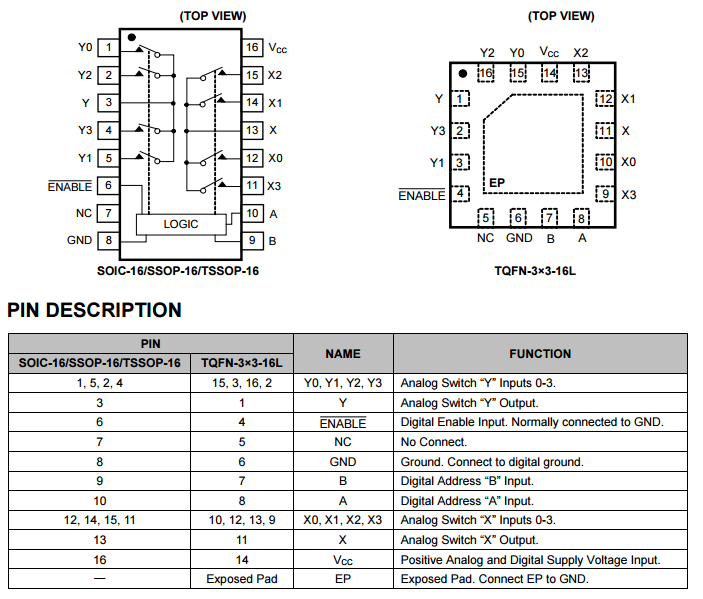

产品封装图 返回TOP
电路原理图 返回TOP
相关芯片选择指南 返回TOP 更多同类产品......
|
