产品概述 返回TOPDc0嘉泰姆
The CXAO42116 (single), CXAO42117 (dual) and CXAO42118 (quad) are rail-to-rail input and output voltage feedback amplifiers offering low cost, rail-to-rail input and output voltage feedback amplifiers. They have a wide input common mode voltage range and output voltage swing, and take the minimum operating supply voltage down to 2.1V. The maximum recommended supply voltage is 5.5V. All are specified over the extended -40℃</span> to +125℃</span> temperature range.The CXAO42116/7/8 provide 500kHz bandwidth at a low current consumption of 18μA per amplifier. Very low input bias currents of 0.5pA enable the CXAO42116/7/8 to be used for integrators, photodiode amplifiers, and piezoelectric sensors. Rail-to-rail inputs and outputs are useful to designers buffering ASIC in single-supply systems.Applications for these amplifiers include safety monitoring, portable equipment, battery and power supply control, and signal conditioning and interfacing for transducers in very low power systems.The CXAO42116 is available in the Green SOT-23-5 and SOIC-8 packages. The CXAO42117 comes in the Green SOIC-8 and MSOP-8 packages. The CXAO42118 quad is offered in Green TSSOP-14 and SOIC-14 packages.
产品特点 返回TOPDc0嘉泰姆
Dc0嘉泰姆
• Low Cost
• Rail-to-Rail Input and Output
0.8mV Typical VOS
• Gain-Bandwidth Product: 500kHz
• Very Low Input Bias Current: 0.5pA
• Supply Voltage Range: 2.1V to 5.5V
• Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
• Low Supply Current: 18μA/Amplifier
• Small Packaging
CXAO42116 Available in SOIC-8 and SOT-23-5
CXAO42117 Available in SOIC-8 and MSOP-8Dc0嘉泰姆
CXAO42118 Available in SOIC-14 and TSSOP-14Dc0嘉泰姆
应用范围 返回TOPDc0嘉泰姆
Dc0嘉泰姆
ASIC Input or Output Amplifier Dc0嘉泰姆
Sensor Interface Dc0嘉泰姆
Piezo Electric Transducer Amplifier Dc0嘉泰姆
Medical Instrumentation Dc0嘉泰姆
Mobile Communication Dc0嘉泰姆
Audio Output Dc0嘉泰姆
Portable SystemsDc0嘉泰姆
Smoke Detectors Dc0嘉泰姆
Mobile Telephone Dc0嘉泰姆
Notebook PC Dc0嘉泰姆
PCMCIA Cards Dc0嘉泰姆
Battery-Powered EquipmentDc0嘉泰姆
技术规格书（产品PDF) 返回TOP Dc0嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
Dc0嘉泰姆
Dc0嘉泰姆
产品封装图 返回TOPDc0嘉泰姆
Dc0嘉泰姆

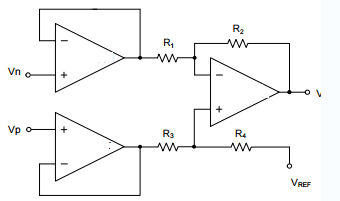

电路原理图 返回TOPDc0嘉泰姆
Dc0嘉泰姆
Dc0嘉泰姆
Dc0嘉泰姆
低功耗运算放大器Dc0嘉泰姆 |
Part No.Dc0嘉泰姆 | CHDc0嘉泰姆 | SHDNDc0嘉泰姆 | VCC Dc0嘉泰姆 (Min)Dc0嘉泰姆 | VCCDc0嘉泰姆 (Max)Dc0嘉泰姆 | VOSDc0嘉泰姆 (mV)Dc0嘉泰姆 | Iq/CH Dc0嘉泰姆 (μA)Dc0嘉泰姆 | IB Dc0嘉泰姆 (pA)Dc0嘉泰姆 | GBP Dc0嘉泰姆 (MHz)Dc0嘉泰姆 | SR (V/ms)Dc0嘉泰姆 | ENOISEDc0嘉泰姆 (nV/√</sub>Hz)Dc0嘉泰姆 | PackageDc0嘉泰姆 |
CXAO42107Dc0嘉泰姆 | 2Dc0嘉泰姆 | NDc0嘉泰姆 | 2.1Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 5Dc0嘉泰姆 | 60Dc0嘉泰姆 | 10Dc0嘉泰姆 | 1Dc0嘉泰姆 | 520Dc0嘉泰姆 | 27Dc0嘉泰姆 | SOIC-8 MSOP-8 DIP-8Dc0嘉泰姆 |
CXAO42108ADc0嘉泰姆 | 1Dc0嘉泰姆 | NDc0嘉泰姆 | 1.8Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 0.85Dc0嘉泰姆 | 2.5Dc0嘉泰姆 | 1Dc0嘉泰姆 | 0.12Dc0嘉泰姆 | 80Dc0嘉泰姆 | 75Dc0嘉泰姆 | SOT-23-5 SC70-5 TDFN-2x2-6LDc0嘉泰姆 |
CXAO42108BDc0嘉泰姆 | 2Dc0嘉泰姆 | NDc0嘉泰姆 | 1.8Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 0.85Dc0嘉泰姆 | 2.5Dc0嘉泰姆 | 1Dc0嘉泰姆 | 0.12Dc0嘉泰姆 | 80Dc0嘉泰姆 | 75Dc0嘉泰姆 | SOT-23-8 SOIC-8Dc0嘉泰姆 |
CXAO42108CDc0嘉泰姆 | 4Dc0嘉泰姆 | NDc0嘉泰姆 | 1.8Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 0.85Dc0嘉泰姆 | 2.5Dc0嘉泰姆 | 1Dc0嘉泰姆 | 0.12Dc0嘉泰姆 | 80Dc0嘉泰姆 | 75Dc0嘉泰姆 | TSSOP-14Dc0嘉泰姆 |
CXAO42109ADc0嘉泰姆 | 1Dc0嘉泰姆 | NDc0嘉泰姆 | 3.3Dc0嘉泰姆 | 24Dc0嘉泰姆 | 1Dc0嘉泰姆 | 50Dc0嘉泰姆 | 5Dc0嘉泰姆 | 1Dc0嘉泰姆 | 300Dc0嘉泰姆 | 25Dc0嘉泰姆 | SOT-23-5 SC70-5Dc0嘉泰姆 |
CXAO42109BDc0嘉泰姆 | 2Dc0嘉泰姆 | NDc0嘉泰姆 | 3.3Dc0嘉泰姆 | 24Dc0嘉泰姆 | 1Dc0嘉泰姆 | 50Dc0嘉泰姆 | 5Dc0嘉泰姆 | 1Dc0嘉泰姆 | 300Dc0嘉泰姆 | 25Dc0嘉泰姆 | SOIC-8 MSOP-8 TDFN-2x3-8LDc0嘉泰姆 |
CXAO42109CDc0嘉泰姆 | 4Dc0嘉泰姆 | NDc0嘉泰姆 | 3.3Dc0嘉泰姆 | 24Dc0嘉泰姆 | 1Dc0嘉泰姆 | 50Dc0嘉泰姆 | 5Dc0嘉泰姆 | 1Dc0嘉泰姆 | 300Dc0嘉泰姆 | 25Dc0嘉泰姆 | SOIC-14Dc0嘉泰姆 |
CXAO42110Dc0嘉泰姆 | 1Dc0嘉泰姆 | NDc0嘉泰姆 | 4.5Dc0嘉泰姆 | 36Dc0嘉泰姆 | 3Dc0嘉泰姆 | 144Dc0嘉泰姆 | 20Dc0嘉泰姆 | 1.4Dc0嘉泰姆 | 5000Dc0嘉泰姆 | 45Dc0嘉泰姆 | SOT-23-5 SOIC-8 MSOP-8Dc0嘉泰姆 |
CXAO42111Dc0嘉泰姆 | 2Dc0嘉泰姆 | NDc0嘉泰姆 | 4.5Dc0嘉泰姆 | 36Dc0嘉泰姆 | 3Dc0嘉泰姆 | 144Dc0嘉泰姆 | 20Dc0嘉泰姆 | 1.4Dc0嘉泰姆 | 5000Dc0嘉泰姆 | 45Dc0嘉泰姆 | SOIC-8 MSOP-8Dc0嘉泰姆 |
CXAO42112Dc0嘉泰姆 | 4Dc0嘉泰姆 | NDc0嘉泰姆 | 4.5Dc0嘉泰姆 | 36Dc0嘉泰姆 | 3Dc0嘉泰姆 | 144Dc0嘉泰姆 | 20Dc0嘉泰姆 | 1.4Dc0嘉泰姆 | 5000Dc0嘉泰姆 | 45Dc0嘉泰姆 | SOIC-14 TSSOP-14Dc0嘉泰姆 |
CXAO42113Dc0嘉泰姆 | 1Dc0嘉泰姆 | NDc0嘉泰姆 | 2.1Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.5Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 0.15Dc0嘉泰姆 | 50Dc0嘉泰姆 | 85Dc0嘉泰姆 | SOT-23-5 SOIC-8Dc0嘉泰姆 |
CXAO42114Dc0嘉泰姆 | 2Dc0嘉泰姆 | NDc0嘉泰姆 | 2.1Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.5Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 0.15Dc0嘉泰姆 | 50Dc0嘉泰姆 | 85Dc0嘉泰姆 | SOIC-8 MSOP-8Dc0嘉泰姆 |
CXAO42115Dc0嘉泰姆 | 4Dc0嘉泰姆 | NDc0嘉泰姆 | 2.1Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.5Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 0.15Dc0嘉泰姆 | 50Dc0嘉泰姆 | 85Dc0嘉泰姆 | SOIC-14 TSSOP-14Dc0嘉泰姆 |
CXAO42116Dc0嘉泰姆 | 1Dc0嘉泰姆 | NDc0嘉泰姆 | 2.1Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.5Dc0嘉泰姆 | 18Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 200Dc0嘉泰姆 | 33Dc0嘉泰姆 | SOT-23-5 SOIC-8Dc0嘉泰姆 |
CXAO42117Dc0嘉泰姆 | 2Dc0嘉泰姆 | NDc0嘉泰姆 | 2.1Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.5Dc0嘉泰姆 | 18Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 200Dc0嘉泰姆 | 33Dc0嘉泰姆 | SOIC-8 MSOP-8Dc0嘉泰姆 |
CXAO42118Dc0嘉泰姆 | 4Dc0嘉泰姆 | NDc0嘉泰姆 | 2.1Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.5Dc0嘉泰姆 | 18Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 200Dc0嘉泰姆 | 33Dc0嘉泰姆 | SOIC-14 TSSOP-14Dc0嘉泰姆 |
CXAO42119Dc0嘉泰姆 | 1Dc0嘉泰姆 | NDc0嘉泰姆 | 1.8Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.4Dc0嘉泰姆 | 80Dc0嘉泰姆 | 3Dc0嘉泰姆 | 1.5Dc0嘉泰姆 | 800Dc0嘉泰姆 | 30Dc0嘉泰姆 | SOT-23-5 SC70-5 SOIC-8 MSOP-8Dc0嘉泰姆 |
CXAO42120Dc0嘉泰姆 | 2Dc0嘉泰姆 | NDc0嘉泰姆 | 1.8Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.4Dc0嘉泰姆 | 80Dc0嘉泰姆 | 3Dc0嘉泰姆 | 1.5Dc0嘉泰姆 | 800Dc0嘉泰姆 | 30Dc0嘉泰姆 | SOIC-8 MSOP-8Dc0嘉泰姆 |
CXAO42121Dc0嘉泰姆 | 1Dc0嘉泰姆 | YDc0嘉泰姆 | 1.8Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.4Dc0嘉泰姆 | 80Dc0嘉泰姆 | 3Dc0嘉泰姆 | 1.5Dc0嘉泰姆 | 800Dc0嘉泰姆 | 30Dc0嘉泰姆 | SOT-23-6 SOIC-8 MSOP-8Dc0嘉泰姆 |
CXAO42122Dc0嘉泰姆 | 4Dc0嘉泰姆 | NDc0嘉泰姆 | 1.8Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.4Dc0嘉泰姆 | 80Dc0嘉泰姆 | 3Dc0嘉泰姆 | 1.5Dc0嘉泰姆 | 800Dc0嘉泰姆 | 30Dc0嘉泰姆 | SOIC-14 TSSOP-14Dc0嘉泰姆 |
CXAO42123Dc0嘉泰姆 | 1Dc0嘉泰姆 | NDc0嘉泰姆 | 2.1Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.5Dc0嘉泰姆 | 46Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 1.1Dc0嘉泰姆 | 520Dc0嘉泰姆 | 27Dc0嘉泰姆 | SOT-23-5 SOIC-8 SC70-5Dc0嘉泰姆 |
CXAO42124Dc0嘉泰姆 | 2Dc0嘉泰姆 | NDc0嘉泰姆 | 2.1Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.5Dc0嘉泰姆 | 46Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 1.1Dc0嘉泰姆 | 520Dc0嘉泰姆 | 27Dc0嘉泰姆 | SOIC-8 MSOP-8 TSSOP-8Dc0嘉泰姆 |
CXAO42125Dc0嘉泰姆 | 1Dc0嘉泰姆 | YDc0嘉泰姆 | 2.1Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.5Dc0嘉泰姆 | 48Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 1.1Dc0嘉泰姆 | 520Dc0嘉泰姆 | 27Dc0嘉泰姆 | SOT-23-6 SOIC-8Dc0嘉泰姆 |
CXAO42126Dc0嘉泰姆 | 4Dc0嘉泰姆 | NDc0嘉泰姆 | 2.1Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.5Dc0嘉泰姆 | 46Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 1.1Dc0嘉泰姆 | 520Dc0嘉泰姆 | 27Dc0嘉泰姆 | SOIC-14 TSSOP-14Dc0嘉泰姆 |
CXAO42127Dc0嘉泰姆 | 1Dc0嘉泰姆 | NDc0嘉泰姆 | 2.1Dc0嘉泰姆 | 5.5Dc0嘉泰姆 | 3.5Dc0嘉泰姆 | 48Dc0嘉泰姆 | 0.5Dc0嘉泰姆 | 1.1Dc0嘉泰姆 | 520Dc0嘉泰姆 | 27Dc0嘉泰姆 | SOT-23-Dc0嘉泰姆 |
