产品概述 返回TOPFqs嘉泰姆
The CXAO42110 (single), CXAO42111 (dual) and CXAO42112 (quad) are high voltage operational amplifiers that are designed to offer a wide input common mode voltage range and output voltage swing. These devices can operate from ±2.25V to ±18V dual power supplies or from +4.5V to +36V single supplies.Fqs嘉泰姆
The devices feature high slew rate, low input bias and offset current, low offset voltage and low offset-voltage temperature coefficient.Fqs嘉泰姆
The CXAO42110/1/2 are specified over the extended -40℃</span> to +125℃</span> temperature range. The CXAO42110 single is available in Green SOT-23-5, MSOP-8 and SOIC-8 packages. The CXAO42111 dual is available in Green SOIC-8 and MSOP-8 packages. The CXAO42112 quad is available in Green SOIC-14 and TSSOP-14 packages.Fqs嘉泰姆
产品特点 返回TOPFqs嘉泰姆
• Low Power Consumption: 150μA/Amplifier
• Wide Input Common Mode Voltage Range
• Low Input Bias and Offset Currents
• Output Short-Circuit Protection
• Rail-to-Rail Output
• High Input Impedance
• Low Offset Voltage: 3mV (MAX)
• High Slew Rate: 7V/μs
• Small Packaging:
SGM8271 Available in SOT-23-5, MSOP-8 and
SOIC-8 Packages
SGM8272 Available in MSOP-8 and SOIC-8 Packages
SGM8274 Available in TSSOP-14 and SOIC-14 PackagesFqs嘉泰姆
应用范围 返回TOPFqs嘉泰姆
Fqs嘉泰姆
High Impedance Sensors
Photodiode Amplifier
Precision Instrumentation
Phase-Locked Loop Filters
High End, Professional Audio
DAC Output Amplifier
ATEFqs嘉泰姆
MedicalFqs嘉泰姆
技术规格书（产品PDF) 返回TOP Fqs嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
Fqs嘉泰姆
Fqs嘉泰姆
产品封装图 返回TOPFqs嘉泰姆
Fqs嘉泰姆

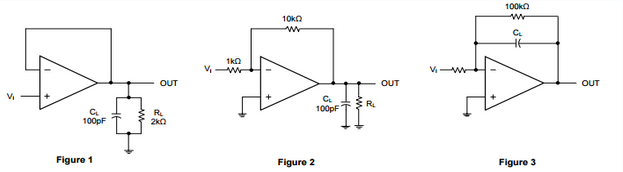

电路原理图 返回TOPFqs嘉泰姆
Fqs嘉泰姆
Fqs嘉泰姆
Fqs嘉泰姆
低功耗运算放大器Fqs嘉泰姆 |
Part No.Fqs嘉泰姆 | CHFqs嘉泰姆 | SHDNFqs嘉泰姆 | VCC Fqs嘉泰姆 (Min)Fqs嘉泰姆 | VCCFqs嘉泰姆 (Max)Fqs嘉泰姆 | VOSFqs嘉泰姆 (mV)Fqs嘉泰姆 | Iq/CH Fqs嘉泰姆 (μA)Fqs嘉泰姆 | IB Fqs嘉泰姆 (pA)Fqs嘉泰姆 | GBP Fqs嘉泰姆 (MHz)Fqs嘉泰姆 | SR (V/ms)Fqs嘉泰姆 | ENOISEFqs嘉泰姆 (nV/√</sub>Hz)Fqs嘉泰姆 | PackageFqs嘉泰姆 |
CXAO42107Fqs嘉泰姆 | 2Fqs嘉泰姆 | NFqs嘉泰姆 | 2.1Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 5Fqs嘉泰姆 | 60Fqs嘉泰姆 | 10Fqs嘉泰姆 | 1Fqs嘉泰姆 | 520Fqs嘉泰姆 | 27Fqs嘉泰姆 | SOIC-8 MSOP-8 DIP-8Fqs嘉泰姆 |
CXAO42108AFqs嘉泰姆 | 1Fqs嘉泰姆 | NFqs嘉泰姆 | 1.8Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 0.85Fqs嘉泰姆 | 2.5Fqs嘉泰姆 | 1Fqs嘉泰姆 | 0.12Fqs嘉泰姆 | 80Fqs嘉泰姆 | 75Fqs嘉泰姆 | SOT-23-5 SC70-5 TDFN-2x2-6LFqs嘉泰姆 |
CXAO42108BFqs嘉泰姆 | 2Fqs嘉泰姆 | NFqs嘉泰姆 | 1.8Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 0.85Fqs嘉泰姆 | 2.5Fqs嘉泰姆 | 1Fqs嘉泰姆 | 0.12Fqs嘉泰姆 | 80Fqs嘉泰姆 | 75Fqs嘉泰姆 | SOT-23-8 SOIC-8Fqs嘉泰姆 |
CXAO42108CFqs嘉泰姆 | 4Fqs嘉泰姆 | NFqs嘉泰姆 | 1.8Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 0.85Fqs嘉泰姆 | 2.5Fqs嘉泰姆 | 1Fqs嘉泰姆 | 0.12Fqs嘉泰姆 | 80Fqs嘉泰姆 | 75Fqs嘉泰姆 | TSSOP-14Fqs嘉泰姆 |
CXAO42109AFqs嘉泰姆 | 1Fqs嘉泰姆 | NFqs嘉泰姆 | 3.3Fqs嘉泰姆 | 24Fqs嘉泰姆 | 1Fqs嘉泰姆 | 50Fqs嘉泰姆 | 5Fqs嘉泰姆 | 1Fqs嘉泰姆 | 300Fqs嘉泰姆 | 25Fqs嘉泰姆 | SOT-23-5 SC70-5Fqs嘉泰姆 |
CXAO42109BFqs嘉泰姆 | 2Fqs嘉泰姆 | NFqs嘉泰姆 | 3.3Fqs嘉泰姆 | 24Fqs嘉泰姆 | 1Fqs嘉泰姆 | 50Fqs嘉泰姆 | 5Fqs嘉泰姆 | 1Fqs嘉泰姆 | 300Fqs嘉泰姆 | 25Fqs嘉泰姆 | SOIC-8 MSOP-8 TDFN-2x3-8LFqs嘉泰姆 |
CXAO42109CFqs嘉泰姆 | 4Fqs嘉泰姆 | NFqs嘉泰姆 | 3.3Fqs嘉泰姆 | 24Fqs嘉泰姆 | 1Fqs嘉泰姆 | 50Fqs嘉泰姆 | 5Fqs嘉泰姆 | 1Fqs嘉泰姆 | 300Fqs嘉泰姆 | 25Fqs嘉泰姆 | SOIC-14Fqs嘉泰姆 |
CXAO42110Fqs嘉泰姆 | 1Fqs嘉泰姆 | NFqs嘉泰姆 | 4.5Fqs嘉泰姆 | 36Fqs嘉泰姆 | 3Fqs嘉泰姆 | 144Fqs嘉泰姆 | 20Fqs嘉泰姆 | 1.4Fqs嘉泰姆 | 5000Fqs嘉泰姆 | 45Fqs嘉泰姆 | SOT-23-5 SOIC-8 MSOP-8Fqs嘉泰姆 |
CXAO42111Fqs嘉泰姆 | 2Fqs嘉泰姆 | NFqs嘉泰姆 | 4.5Fqs嘉泰姆 | 36Fqs嘉泰姆 | 3Fqs嘉泰姆 | 144Fqs嘉泰姆 | 20Fqs嘉泰姆 | 1.4Fqs嘉泰姆 | 5000Fqs嘉泰姆 | 45Fqs嘉泰姆 | SOIC-8 MSOP-8Fqs嘉泰姆 |
CXAO42112Fqs嘉泰姆 | 4Fqs嘉泰姆 | NFqs嘉泰姆 | 4.5Fqs嘉泰姆 | 36Fqs嘉泰姆 | 3Fqs嘉泰姆 | 144Fqs嘉泰姆 | 20Fqs嘉泰姆 | 1.4Fqs嘉泰姆 | 5000Fqs嘉泰姆 | 45Fqs嘉泰姆 | SOIC-14 TSSOP-14Fqs嘉泰姆 |
CXAO42113Fqs嘉泰姆 | 1Fqs嘉泰姆 | NFqs嘉泰姆 | 2.1Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.5Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 0.15Fqs嘉泰姆 | 50Fqs嘉泰姆 | 85Fqs嘉泰姆 | SOT-23-5 SOIC-8Fqs嘉泰姆 |
CXAO42114Fqs嘉泰姆 | 2Fqs嘉泰姆 | NFqs嘉泰姆 | 2.1Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.5Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 0.15Fqs嘉泰姆 | 50Fqs嘉泰姆 | 85Fqs嘉泰姆 | SOIC-8 MSOP-8Fqs嘉泰姆 |
CXAO42115Fqs嘉泰姆 | 4Fqs嘉泰姆 | NFqs嘉泰姆 | 2.1Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.5Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 0.15Fqs嘉泰姆 | 50Fqs嘉泰姆 | 85Fqs嘉泰姆 | SOIC-14 TSSOP-14Fqs嘉泰姆 |
CXAO42116Fqs嘉泰姆 | 1Fqs嘉泰姆 | NFqs嘉泰姆 | 2.1Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.5Fqs嘉泰姆 | 18Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 200Fqs嘉泰姆 | 33Fqs嘉泰姆 | SOT-23-5 SOIC-8Fqs嘉泰姆 |
CXAO42117Fqs嘉泰姆 | 2Fqs嘉泰姆 | NFqs嘉泰姆 | 2.1Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.5Fqs嘉泰姆 | 18Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 200Fqs嘉泰姆 | 33Fqs嘉泰姆 | SOIC-8 MSOP-8Fqs嘉泰姆 |
CXAO42118Fqs嘉泰姆 | 4Fqs嘉泰姆 | NFqs嘉泰姆 | 2.1Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.5Fqs嘉泰姆 | 18Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 200Fqs嘉泰姆 | 33Fqs嘉泰姆 | SOIC-14 TSSOP-14Fqs嘉泰姆 |
CXAO42119Fqs嘉泰姆 | 1Fqs嘉泰姆 | NFqs嘉泰姆 | 1.8Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.4Fqs嘉泰姆 | 80Fqs嘉泰姆 | 3Fqs嘉泰姆 | 1.5Fqs嘉泰姆 | 800Fqs嘉泰姆 | 30Fqs嘉泰姆 | SOT-23-5 SC70-5 SOIC-8 MSOP-8Fqs嘉泰姆 |
CXAO42120Fqs嘉泰姆 | 2Fqs嘉泰姆 | NFqs嘉泰姆 | 1.8Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.4Fqs嘉泰姆 | 80Fqs嘉泰姆 | 3Fqs嘉泰姆 | 1.5Fqs嘉泰姆 | 800Fqs嘉泰姆 | 30Fqs嘉泰姆 | SOIC-8 MSOP-8Fqs嘉泰姆 |
CXAO42121Fqs嘉泰姆 | 1Fqs嘉泰姆 | YFqs嘉泰姆 | 1.8Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.4Fqs嘉泰姆 | 80Fqs嘉泰姆 | 3Fqs嘉泰姆 | 1.5Fqs嘉泰姆 | 800Fqs嘉泰姆 | 30Fqs嘉泰姆 | SOT-23-6 SOIC-8 MSOP-8Fqs嘉泰姆 |
CXAO42122Fqs嘉泰姆 | 4Fqs嘉泰姆 | NFqs嘉泰姆 | 1.8Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.4Fqs嘉泰姆 | 80Fqs嘉泰姆 | 3Fqs嘉泰姆 | 1.5Fqs嘉泰姆 | 800Fqs嘉泰姆 | 30Fqs嘉泰姆 | SOIC-14 TSSOP-14Fqs嘉泰姆 |
CXAO42123Fqs嘉泰姆 | 1Fqs嘉泰姆 | NFqs嘉泰姆 | 2.1Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.5Fqs嘉泰姆 | 46Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 1.1Fqs嘉泰姆 | 520Fqs嘉泰姆 | 27Fqs嘉泰姆 | SOT-23-5 SOIC-8 SC70-5Fqs嘉泰姆 |
CXAO42124Fqs嘉泰姆 | 2Fqs嘉泰姆 | NFqs嘉泰姆 | 2.1Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.5Fqs嘉泰姆 | 46Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 1.1Fqs嘉泰姆 | 520Fqs嘉泰姆 | 27Fqs嘉泰姆 | SOIC-8 MSOP-8 TSSOP-8Fqs嘉泰姆 |
CXAO42125Fqs嘉泰姆 | 1Fqs嘉泰姆 | YFqs嘉泰姆 | 2.1Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.5Fqs嘉泰姆 | 48Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 1.1Fqs嘉泰姆 | 520Fqs嘉泰姆 | 27Fqs嘉泰姆 | SOT-23-6 SOIC-8Fqs嘉泰姆 |
CXAO42126Fqs嘉泰姆 | 4Fqs嘉泰姆 | NFqs嘉泰姆 | 2.1Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.5Fqs嘉泰姆 | 46Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 1.1Fqs嘉泰姆 | 520Fqs嘉泰姆 | 27Fqs嘉泰姆 | SOIC-14 TSSOP-14Fqs嘉泰姆 |
CXAO42127Fqs嘉泰姆 | 1Fqs嘉泰姆 | NFqs嘉泰姆 | 2.1Fqs嘉泰姆 | 5.5Fqs嘉泰姆 | 3.5Fqs嘉泰姆 | 48Fqs嘉泰姆 | 0.5Fqs嘉泰姆 | 1.1Fqs嘉泰姆 | 520Fqs嘉泰姆 | 27Fqs嘉泰姆 | SOT-23-5Fqs嘉泰姆 |
