产品概述 返回TOPvjH嘉泰姆
The CXAO42110 (single), CXAO42111 (dual) and CXAO42112 (quad) are high voltage operational amplifiers that are designed to offer a wide input common mode voltage range and output voltage swing. These devices can operate from ±2.25V to ±18V dual power supplies or from +4.5V to +36V single supplies.vjH嘉泰姆
The devices feature high slew rate, low input bias and offset current, low offset voltage and low offset-voltage temperature coefficient.vjH嘉泰姆
The CXAO42110/1/2 are specified over the extended -40℃</span> to +125℃</span> temperature range. The CXAO42110 single is available in Green SOT-23-5, MSOP-8 and SOIC-8 packages. The CXAO42111 dual is available in Green SOIC-8 and MSOP-8 packages. The CXAO42112 quad is available in Green SOIC-14 and TSSOP-14 packagesvjH嘉泰姆
产品特点 返回TOPvjH嘉泰姆
• Low Power Consumption: 150μA/Amplifier
• Wide Input Common Mode Voltage Range
• Low Input Bias and Offset Currents
• Output Short-Circuit Protection
• Rail-to-Rail Output
• High Input Impedance
• Low Offset Voltage: 3mV (MAX)
• High Slew Rate: 7V/μs
• Small Packaging:
CXAO42110 Available in SOT-23-5, MSOP-8 and
SOIC-8 Packages
CXAO42111 Available in MSOP-8 and SOIC-8 Packages
CXAO42112 Available in TSSOP-14 and SOIC-14 PackagesvjH嘉泰姆
应用范围 返回TOPvjH嘉泰姆
vjH嘉泰姆
High Impedance Sensors
Photodiode Amplifier
Precision Instrumentation
Phase-Locked Loop Filters
High End, Professional Audio
DAC Output Amplifier
ATEvjH嘉泰姆
MedicalvjH嘉泰姆
技术规格书（产品PDF) 返回TOP vjH嘉泰姆
需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
vjH嘉泰姆
vjH嘉泰姆
产品封装图 返回TOPvjH嘉泰姆
vjH嘉泰姆

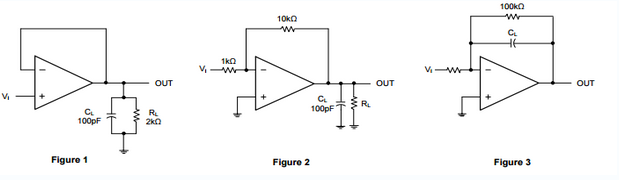

电路原理图 返回TOPvjH嘉泰姆
vjH嘉泰姆
vjH嘉泰姆
vjH嘉泰姆
低功耗运算放大器vjH嘉泰姆 |
Part No.vjH嘉泰姆 | CHvjH嘉泰姆 | SHDNvjH嘉泰姆 | VCC vjH嘉泰姆 (Min)vjH嘉泰姆 | VCCvjH嘉泰姆 (Max)vjH嘉泰姆 | VOSvjH嘉泰姆 (mV)vjH嘉泰姆 | Iq/CH vjH嘉泰姆 (μA)vjH嘉泰姆 | IB vjH嘉泰姆 (pA)vjH嘉泰姆 | GBP vjH嘉泰姆 (MHz)vjH嘉泰姆 | SR (V/ms)vjH嘉泰姆 | ENOISEvjH嘉泰姆 (nV/√</sub>Hz)vjH嘉泰姆 | PackagevjH嘉泰姆 |
CXAO42107vjH嘉泰姆 | 2vjH嘉泰姆 | NvjH嘉泰姆 | 2.1vjH嘉泰姆 | 5.5vjH嘉泰姆 | 5vjH嘉泰姆 | 60vjH嘉泰姆 | 10vjH嘉泰姆 | 1vjH嘉泰姆 | 520vjH嘉泰姆 | 27vjH嘉泰姆 | SOIC-8 MSOP-8 DIP-8vjH嘉泰姆 |
CXAO42108AvjH嘉泰姆 | 1vjH嘉泰姆 | NvjH嘉泰姆 | 1.8vjH嘉泰姆 | 5.5vjH嘉泰姆 | 0.85vjH嘉泰姆 | 2.5vjH嘉泰姆 | 1vjH嘉泰姆 | 0.12vjH嘉泰姆 | 80vjH嘉泰姆 | 75vjH嘉泰姆 | SOT-23-5 SC70-5 TDFN-2x2-6LvjH嘉泰姆 |
CXAO42108BvjH嘉泰姆 | 2vjH嘉泰姆 | NvjH嘉泰姆 | 1.8vjH嘉泰姆 | 5.5vjH嘉泰姆 | 0.85vjH嘉泰姆 | 2.5vjH嘉泰姆 | 1vjH嘉泰姆 | 0.12vjH嘉泰姆 | 80vjH嘉泰姆 | 75vjH嘉泰姆 | SOT-23-8 SOIC-8vjH嘉泰姆 |
CXAO42108CvjH嘉泰姆 | 4vjH嘉泰姆 | NvjH嘉泰姆 | 1.8vjH嘉泰姆 | 5.5vjH嘉泰姆 | 0.85vjH嘉泰姆 | 2.5vjH嘉泰姆 | 1vjH嘉泰姆 | 0.12vjH嘉泰姆 | 80vjH嘉泰姆 | 75vjH嘉泰姆 | TSSOP-14vjH嘉泰姆 |
CXAO42109AvjH嘉泰姆 | 1vjH嘉泰姆 | NvjH嘉泰姆 | 3.3vjH嘉泰姆 | 24vjH嘉泰姆 | 1vjH嘉泰姆 | 50vjH嘉泰姆 | 5vjH嘉泰姆 | 1vjH嘉泰姆 | 300vjH嘉泰姆 | 25vjH嘉泰姆 | SOT-23-5 SC70-5vjH嘉泰姆 |
CXAO42109BvjH嘉泰姆 | 2vjH嘉泰姆 | NvjH嘉泰姆 | 3.3vjH嘉泰姆 | 24vjH嘉泰姆 | 1vjH嘉泰姆 | 50vjH嘉泰姆 | 5vjH嘉泰姆 | 1vjH嘉泰姆 | 300vjH嘉泰姆 | 25vjH嘉泰姆 | SOIC-8 MSOP-8 TDFN-2x3-8LvjH嘉泰姆 |
CXAO42109CvjH嘉泰姆 | 4vjH嘉泰姆 | NvjH嘉泰姆 | 3.3vjH嘉泰姆 | 24vjH嘉泰姆 | 1vjH嘉泰姆 | 50vjH嘉泰姆 | 5vjH嘉泰姆 | 1vjH嘉泰姆 | 300vjH嘉泰姆 | 25vjH嘉泰姆 | SOIC-14vjH嘉泰姆 |
CXAO42110vjH嘉泰姆 | 1vjH嘉泰姆 | NvjH嘉泰姆 | 4.5vjH嘉泰姆 | 36vjH嘉泰姆 | 3vjH嘉泰姆 | 144vjH嘉泰姆 | 20vjH嘉泰姆 | 1.4vjH嘉泰姆 | 5000vjH嘉泰姆 | 45vjH嘉泰姆 | SOT-23-5 SOIC-8 MSOP-8vjH嘉泰姆 |
CXAO42111vjH嘉泰姆 | 2vjH嘉泰姆 | NvjH嘉泰姆 | 4.5vjH嘉泰姆 | 36vjH嘉泰姆 | 3vjH嘉泰姆 | 144vjH嘉泰姆 | 20vjH嘉泰姆 | 1.4vjH嘉泰姆 | 5000vjH嘉泰姆 | 45vjH嘉泰姆 | SOIC-8 MSOP-8vjH嘉泰姆 |
CXAO42112vjH嘉泰姆 | 4vjH嘉泰姆 | NvjH嘉泰姆 | 4.5vjH嘉泰姆 | 36vjH嘉泰姆 | 3vjH嘉泰姆 | 144vjH嘉泰姆 | 20vjH嘉泰姆 | 1.4vjH嘉泰姆 | 5000vjH嘉泰姆 | 45vjH嘉泰姆 | SOIC-14 TSSOP-14vjH嘉泰姆 |
CXAO42113vjH嘉泰姆 | 1vjH嘉泰姆 | NvjH嘉泰姆 | 2.1vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.5vjH嘉泰姆 | 5.5vjH嘉泰姆 | 0.5vjH嘉泰姆 | 0.15vjH嘉泰姆 | 50vjH嘉泰姆 | 85vjH嘉泰姆 | SOT-23-5 SOIC-8vjH嘉泰姆 |
CXAO42114vjH嘉泰姆 | 2vjH嘉泰姆 | NvjH嘉泰姆 | 2.1vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.5vjH嘉泰姆 | 5.5vjH嘉泰姆 | 0.5vjH嘉泰姆 | 0.15vjH嘉泰姆 | 50vjH嘉泰姆 | 85vjH嘉泰姆 | SOIC-8 MSOP-8vjH嘉泰姆 |
CXAO42115vjH嘉泰姆 | 4vjH嘉泰姆 | NvjH嘉泰姆 | 2.1vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.5vjH嘉泰姆 | 5.5vjH嘉泰姆 | 0.5vjH嘉泰姆 | 0.15vjH嘉泰姆 | 50vjH嘉泰姆 | 85vjH嘉泰姆 | SOIC-14 TSSOP-14vjH嘉泰姆 |
CXAO42116vjH嘉泰姆 | 1vjH嘉泰姆 | NvjH嘉泰姆 | 2.1vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.5vjH嘉泰姆 | 18vjH嘉泰姆 | 0.5vjH嘉泰姆 | 0.5vjH嘉泰姆 | 200vjH嘉泰姆 | 33vjH嘉泰姆 | SOT-23-5 SOIC-8vjH嘉泰姆 |
CXAO42117vjH嘉泰姆 | 2vjH嘉泰姆 | NvjH嘉泰姆 | 2.1vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.5vjH嘉泰姆 | 18vjH嘉泰姆 | 0.5vjH嘉泰姆 | 0.5vjH嘉泰姆 | 200vjH嘉泰姆 | 33vjH嘉泰姆 | SOIC-8 MSOP-8vjH嘉泰姆 |
CXAO42118vjH嘉泰姆 | 4vjH嘉泰姆 | NvjH嘉泰姆 | 2.1vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.5vjH嘉泰姆 | 18vjH嘉泰姆 | 0.5vjH嘉泰姆 | 0.5vjH嘉泰姆 | 200vjH嘉泰姆 | 33vjH嘉泰姆 | SOIC-14 TSSOP-14vjH嘉泰姆 |
CXAO42119vjH嘉泰姆 | 1vjH嘉泰姆 | NvjH嘉泰姆 | 1.8vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.4vjH嘉泰姆 | 80vjH嘉泰姆 | 3vjH嘉泰姆 | 1.5vjH嘉泰姆 | 800vjH嘉泰姆 | 30vjH嘉泰姆 | SOT-23-5 SC70-5 SOIC-8 MSOP-8vjH嘉泰姆 |
CXAO42120vjH嘉泰姆 | 2vjH嘉泰姆 | NvjH嘉泰姆 | 1.8vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.4vjH嘉泰姆 | 80vjH嘉泰姆 | 3vjH嘉泰姆 | 1.5vjH嘉泰姆 | 800vjH嘉泰姆 | 30vjH嘉泰姆 | SOIC-8 MSOP-8vjH嘉泰姆 |
CXAO42121vjH嘉泰姆 | 1vjH嘉泰姆 | YvjH嘉泰姆 | 1.8vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.4vjH嘉泰姆 | 80vjH嘉泰姆 | 3vjH嘉泰姆 | 1.5vjH嘉泰姆 | 800vjH嘉泰姆 | 30vjH嘉泰姆 | SOT-23-6 SOIC-8 MSOP-8vjH嘉泰姆 |
CXAO42122vjH嘉泰姆 | 4vjH嘉泰姆 | NvjH嘉泰姆 | 1.8vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.4vjH嘉泰姆 | 80vjH嘉泰姆 | 3vjH嘉泰姆 | 1.5vjH嘉泰姆 | 800vjH嘉泰姆 | 30vjH嘉泰姆 | SOIC-14 TSSOP-14vjH嘉泰姆 |
CXAO42123vjH嘉泰姆 | 1vjH嘉泰姆 | NvjH嘉泰姆 | 2.1vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.5vjH嘉泰姆 | 46vjH嘉泰姆 | 0.5vjH嘉泰姆 | 1.1vjH嘉泰姆 | 520vjH嘉泰姆 | 27vjH嘉泰姆 | SOT-23-5 SOIC-8 SC70-5vjH嘉泰姆 |
CXAO42124vjH嘉泰姆 | 2vjH嘉泰姆 | NvjH嘉泰姆 | 2.1vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.5vjH嘉泰姆 | 46vjH嘉泰姆 | 0.5vjH嘉泰姆 | 1.1vjH嘉泰姆 | 520vjH嘉泰姆 | 27vjH嘉泰姆 | SOIC-8 MSOP-8 TSSOP-8vjH嘉泰姆 |
CXAO42125vjH嘉泰姆 | 1vjH嘉泰姆 | YvjH嘉泰姆 | 2.1vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.5vjH嘉泰姆 | 48vjH嘉泰姆 | 0.5vjH嘉泰姆 | 1.1vjH嘉泰姆 | 520vjH嘉泰姆 | 27vjH嘉泰姆 | SOT-23-6 SOIC-8vjH嘉泰姆 |
CXAO42126vjH嘉泰姆 | 4vjH嘉泰姆 | NvjH嘉泰姆 | 2.1vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.5vjH嘉泰姆 | 46vjH嘉泰姆 | 0.5vjH嘉泰姆 | 1.1vjH嘉泰姆 | 520vjH嘉泰姆 | 27vjH嘉泰姆 | SOIC-14 TSSOP-14vjH嘉泰姆 |
CXAO42127vjH嘉泰姆 | 1vjH嘉泰姆 | NvjH嘉泰姆 | 2.1vjH嘉泰姆 | 5.5vjH嘉泰姆 | 3.5vjH嘉泰姆 | 48vjH嘉泰姆 | 0.5vjH嘉泰姆 | 1.1vjH嘉泰姆 | 520vjH嘉泰姆 | 27vjH嘉泰姆 | SOT-23-5vjH嘉泰姆 |
