一,产品概述(General Description)
The JTMA7176 consists of two independent 1.5MHz constant frequency, current mode, and PWM step-down converters. Each converter integrates a main switch with a synchronous rectifier for high efficiency without an external Schottky diode. The JTMA7176 is ideal for powering portable equipment that runs from a single cell Lithium Ion (Li+) battery. Each converter can supply 1A of load
current from a 2.7V to 5.5V input voltage. The output volt age can be regulated as low as 0.6V. The JTMA7176 can also run at 100% duty cycle for low dropout applications.

二.产品特点(Features)
1A Output Current on Each Channel
2.7V to 5.5V Input Voltage Range
1.5MHz Constant Frequency Operation
Low Dropout Operation at 100% Duty Cycle
Synchronous Topology
0.6V Low Reference Voltage
Current Mode Operation
Over-Temperature Protection
Over-Current Protection
Up to 94% Efficiency
Internally Compensated
Lead Free and Green Devices Available
(RoHS Compliant)
三,应用范围 (Applications)
TV Tuner/Box
Portable Instrument

四.下载产品资料PDF文档

jtma7176

jtma7176a

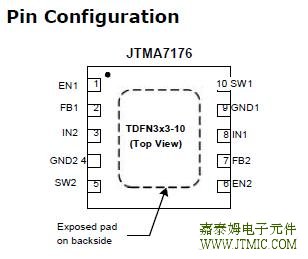

五,产品封装图 (Package)

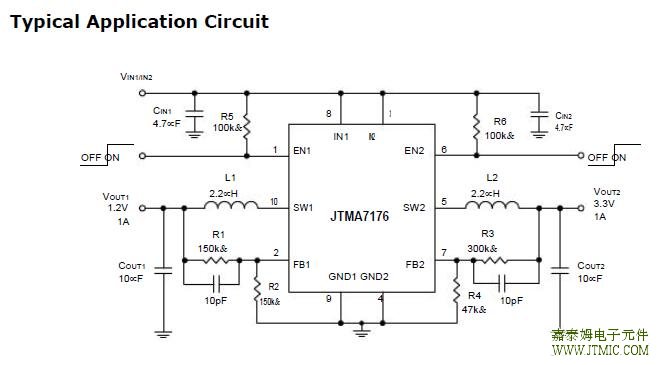

六.电路原理图
