JTMA7178 is a 1.5MHz high efficiency monolithic synchronous

1.产品概述 2.产品特点 3.应用范围 4.下载产品资料PDF文档
5.产品封装图 6.电路原理图 7.功能概述 8.相关产品

一,产品概述(General Description)

JTMA7178 is a 1.5MHz high efficiency monolithic synchronous buck regulator. Design with current mode scheme,the JTMA7178 is stable with
ceramic output capacitor. Input voltage from 2.7V to 6.0V makes the JTMA7178 ideally suited for single Li-Ion battery powered applications. 100%duty cycle provides low dropout operation, extending battery life in portable electrical devices. The internally fixed 1.5MHz operating frequency allows the using
of small surface mount inductors and capacitors. The synchronous switches included inside increase the efficiency and eliminate the need of an external Schottky diode.
The JTMA7178 is available in TDFN2x2-6 packages.

二.产品特点(Features)
1A Output Current
Wide 2.7V~6.0V Input Voltage
Fixed 1.5MHz Switching Frequency
Low Dropout Operating at 100% Duty Cycle
25µA Quiescent Current
Synchronous Rectifier
0.6V Reference Voltage
<0.5µA Input Current During Shutdown
Short-Circuit Protection
Over-Temperature Protection
Available in TDFN2x2-6 Packages
Lead Free and Green Devices Available
(RoHS Compliant)

三,应用范围 (Applications)
HD STB
BT Mouse
PND Instrument
Portable Instrument

四.下载产品资料PDF文档

JTMA7878

JTMA7178A

五,产品封装图 (Package)

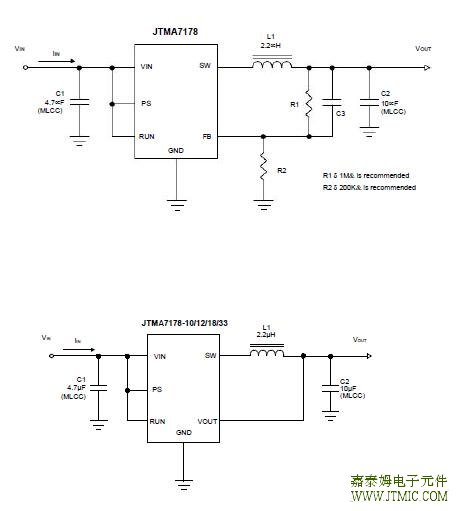

六.电路原理图
