The JTMA7290 is a high efficiency monolithic synchronous buc

1.产品概述 2.产品特点 3.应用范围 4.下载产品资料PDF文档
5.产品封装图 6.电路原理图 7.功能概述 8.相关产品

一,产品概述(General Description)
The JTMA7290 is a high efficiency monolithic synchronous buck regulator. JTMA7290 operates with a constant 1.5MHz switching frequency and using the inductor current as a controlled quantity in the current modearchitecture. The 3.5V to 7.2V input voltage range makes the JTMA7290 ideally suited for single Li-Ion battery powered applications. 100% duty cycle provides low dropout
operation, extending battery life in portable electrical devices. The internally fixed 1.5MHz operating frequency allows the use of small surface mount inductors and
capacitors. The synchronous switches included inside increase the efficiency and eliminate the need for an external Schottky diode.
The JTMA7290 is available in TDFN2x2-8 package

二.产品特点(Features)
1A Output Current
Support 4 AA alkaline, NiCd or NiMH batteries
Wide 3.5V~7.2V Input Voltage
Fixed 1.5MHz Switching Frequency
Low Dropout Operating at 100% duty cycle
Low 25µA Quiescent Current
Integrate Synchronous Rectifier
0.6V Low Reference Voltage
<0.5µA Input Current during Shutdown
Current-Mode Operation with Internal Compensation
- Stable with Ceramic Output Capacitors
- Fast Line Transient Response
Short-Circuit Protection
Over-Temperature Protection with Hysteresis
Available in TDFN2x2-8 Package
Lead Free and Green Devices Available

三,应用范围 (Applications)
E-Book
Toy
Portable Instrument

四.下载产品资料PDF文档

JTMA7290

五,产品封装图 (Package)

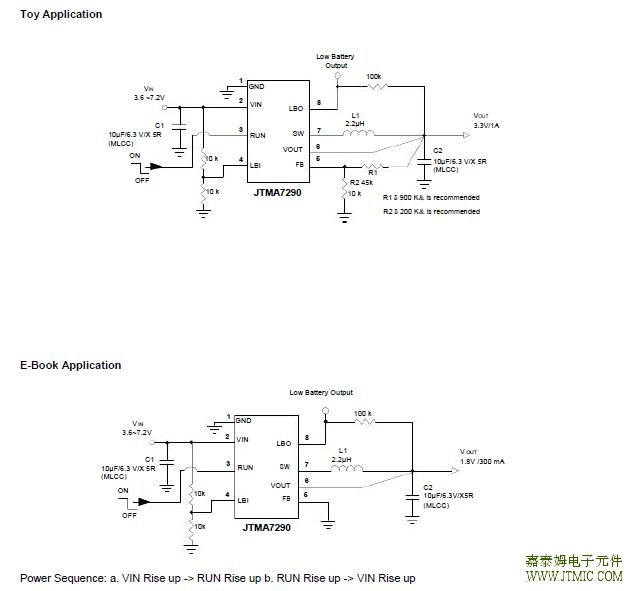

六.电路原理图
