一,产品概述(General Description)

The JTMX4013 is a 180 KHz fixed frequency PWM buck (step-down)
DC/DC converter,capable of driving a 4A load with high efficiency, low ripple
and excellent line and load regulation.Requiring a minimum number of external components, the regulator is simple to use and include internaln High efficiency
frequency compensation and a fixed-frequency oscillator.
The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%.
An over current protection function is built inside.When short protection function
happens, the operation frequency will be reduced from 180KHz to 48KHz. An internal compensation block is built in to minimize external component count.
二.产品特点(Features)

Wide 8V to 36V Input Voltage Range
Output Adjustable from 1.25V to 32V
Maximum Duty Cycle 100%
Minimum Drop Out 0.3V
Fixed 180KHz Switching Frequency
4A Constant Output Current Capability
Internal Optimize Power MOSFET
High efficiency
Excellent line and load regulation
Built in thermal shutdown function
Built in current limit function
Built in output short protection function
Available in TO-252 package
三,应用范围 (Applications)

LCD Monitor and LCD TV
Portable instrument power supply
Telecom / Networking Equipment

四.技术规格书下载（产品PDF）

JTMX4013

JTMX4013 DEMO board manual

五,产品封装图 (Package)

Pin Number	Pin Name	Description
1	GND	Ground Pin. Care must be taken in layout. This pin should be placed outside of the Schottky Diode to output capacitor ground path to prevent switching current spikes from inducing voltage noise into JTMX4013.
2	FB	Feedback Pin (FB). Through an external resistor divider network, FB senses the output voltage and regulates it. The feedback threshold voltage is 1.25V.
3	SW	Power Switch Output Pin (SW). SW is the switch node that supplies power to the output.
4	VC	Internal Voltage Regulator Bypass Capacity. In typical system application, The VC pin connect a 1uf capacity to VIN.
5	VIN	Supply Voltage Input Pin. JTMX4013 operates from a 8V to 36V DC voltage. Bypass Vin to GND with a suitably large capacitor to eliminate noise on the input.

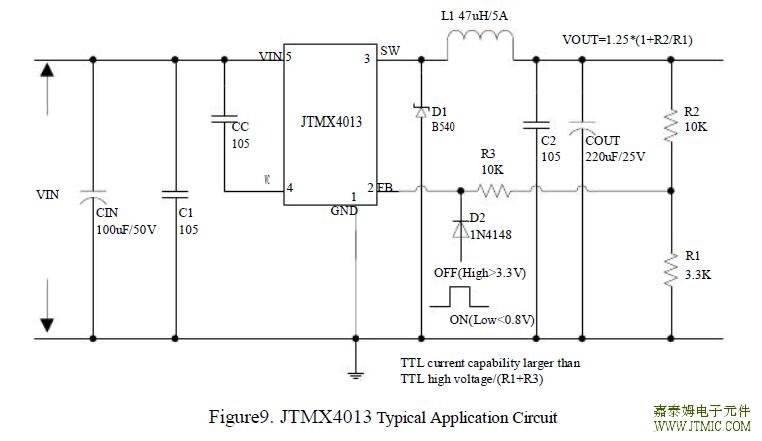

六.电路原理图

七,功能概述

Parameter	Symbol	Value	Unit
Input Voltage	Vin	-0.3 to 40	V
Feedback Pin Voltage	VFB	-0.3 to Vin	V
Output Switch Pin Voltage	VOutput	-0.3 to Vin	V
Power Dissipation	PD	Internally limited	mW
Thermal Resistance (TO252) (Junction to Ambient, No Heatsink, Free Air)	RJA	50	ºC/W
Operating Junction Temperature	TJ	-40 to 125	ºC
Storage Temperature	TSTG	-65 to 150	ºC
Lead Temperature (Soldering, 10 sec)	TLEAD	260	ºC
ESD (HBM)		>2000	V

八,相关芯片选择指南

产品型号	输入电压	开关电流	开关频率	电压版本	封装类型
JTMX4003	5V ~ 32V	4A	300KHz	Adj (0.8V)	TO252-5L
JTMX4005	5V ~ 32V	5A	300KHz	Adj (0.8V)	TO263-5L
JTMX4013	8V ~ 36V	4A	180KHz	Adj (1.25V)	TO252-5L
JTMX4015	8V ~ 36V	5A	180KHz	Adj (1.25V)	TO263-5L
JTMX4016	8V ~ 40V	8A	180KHz	Adj (1.25V)	TO220-5L
