CXSD62297 2A DC/DC同步整流降压芯片输入8-30V输出1.2-16V的车载充电管理IC synchronous step down regulator from a high voltage input supply. Operating with an input voltage range from 8V to 30V

   产品概述 返回TOPLYN嘉泰姆

The CXSD62297 is a synchronous step down regulator from a high voltage input supply.

Operating with an input voltage range from 8V to 30V, the CXSD62297 achieves 2A LYN嘉泰姆

continuous output current with excellent load and line regulation. The switching LYN嘉泰姆

frequency is programmable from 100kHz to 500 kHz and the synchronous architectureLYN嘉泰姆

 provides for highly efficient designs. Current mode operation provides fast transientLYN嘉泰姆

 response and eases loop stabilization.The CXSD62297 requires a minimum number of LYN嘉泰姆

readily available standard external components. Other features include cable compensation,LYN嘉泰姆

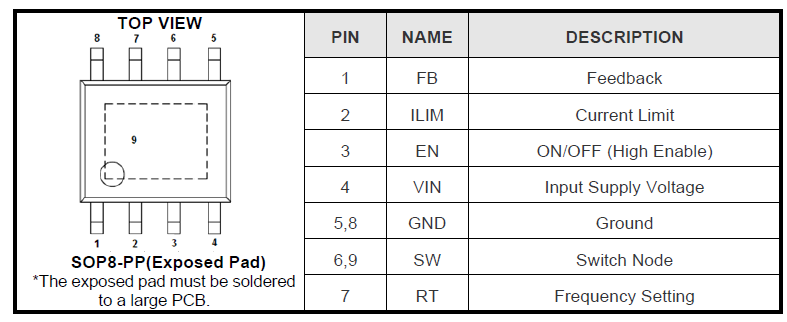

programmable current limit and thermal shutdown.The CXSD62297 converters are available in the industry standard SOP8-PP packages.LYN嘉泰姆

   产品特点 返回TOPLYN嘉泰姆

LYN嘉泰姆

Wide Input Voltage Range: 8.0V～ 30VLYN嘉泰姆

Up to 93% EfficiencyLYN嘉泰姆

Programmable Switching Frequency up to up to 500kHzLYN嘉泰姆

No Loop Compensation RequiredLYN嘉泰姆

Programmable Current LimitLYN嘉泰姆

Cable Compensation from 0Ω to 0.3ΩLYN嘉泰姆

Thermal ShutdownLYN嘉泰姆

Available in SOP8-PP Package
LYN嘉泰姆

宽输入电压范围:8V~30VLYN嘉泰姆

高达93%的效率</p>

可编程开关频率500千赫LYN嘉泰姆

不需要循环补偿</p>

可编程电流限制</p>

电缆补偿从0Ω到0.3ΩLYN嘉泰姆

热关机</p>

SOP8-PP封装LYN嘉泰姆

   应用范围 返回TOPLYN嘉泰姆

LYN嘉泰姆

 Car Charger / AdaptorLYN嘉泰姆

 Pre-Regulator for Linear RegulatorsLYN嘉泰姆

 Distributed Power SystemsLYN嘉泰姆

 Battery ChargerLYN嘉泰姆

   技术规格书（产品PDF) 返回TOP
LYN嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
