DC/DC同步降压转换器2A Step-Down PWM Switch-Mode DC/DC Regulator CXSD62299 step down switch mode converter. It achieves 2A continuous output current over a wide input supply range with excellent load

   产品概述 返回TOPKq2嘉泰姆

       The CXSD62299 is a step down switch mode converter. It achieves 2A

continuous output current over a wide input supply range with excellent

load and line regulation. Current mode operation provides fast transient

response and eases loop stabilization. Fault condition protection includes

cycle-by-cycle urrent limiting and thermal shutdown.

     The CXSD62299 requires a minimum number of readily available standard

 external components.

   产品特点 返回TOPKq2嘉泰姆

* Maximum Output Current: 2A
* Stable with Low ESR Output Ceramic Capacitors
* Thermal Shutdown
* Up to 92% Efficiency
*Cycle-by-Cycle Over Current Protection
* Wide 5V to 16V Operating Input Range
* Programmable Under Voltage Lockout
* Output Adjustable from 1.2V to 16V

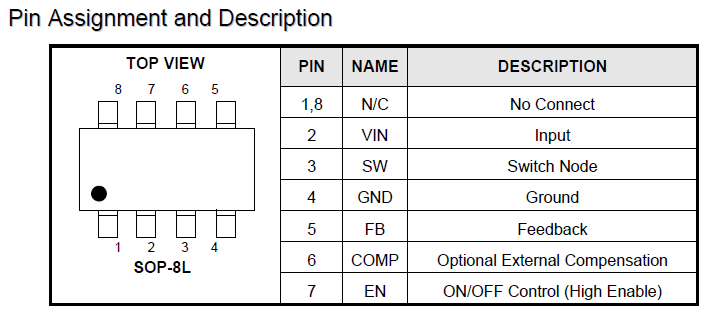

* Available in 8 pin SO package
* Frequency: up to 400kHzKq2嘉泰姆

   应用范围 返回TOPKq2嘉泰姆

Kq2嘉泰姆

 Pre-Regulator for Linear RegulatorsKq2嘉泰姆

 Distributed Power SystemsKq2嘉泰姆

 Battery ChargerKq2嘉泰姆

   技术规格书（产品PDF) 返回TOP Kq2嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
