1.5V/1.3A低压同步芯片1.5MHz, 1.3A Synchronous Step-Down Converter CXSD62300 high-efficiency, high frequency synchronous step-down DC-DC regulator ICs capable of delivering up to 1.3A output currents

   产品概述 返回TOPC15嘉泰姆

The CXSD62300 are high-efficiency, high frequency synchronous

step-down DC-DC regulator ICs capable of delivering up to 1.3A

output currents. The CXSD62300  can operate over a wide input

voltage range from 2.3V to 6V and integrates main switch and

synchronous switch with very low RDS(ON) to minimize the

conduction loss.It is ideal for powering portable equipment that runs

from a single cell Lithium-Ion (Li+) battery. The output voltage can

be regulated as low as 0.6V. The CXSD62300  can also run at 100%

duty cycle for low dropout operation,extending battery life in

portable system.This device offers two operation modes,PWM mode

 and PFM Mode switching control, which allows a high efficiency over

the wider range of the load.The CXSD62300  is offered in a low profile

(1mm) 5-pin, thin SOT package, and is available in an adjustable version.

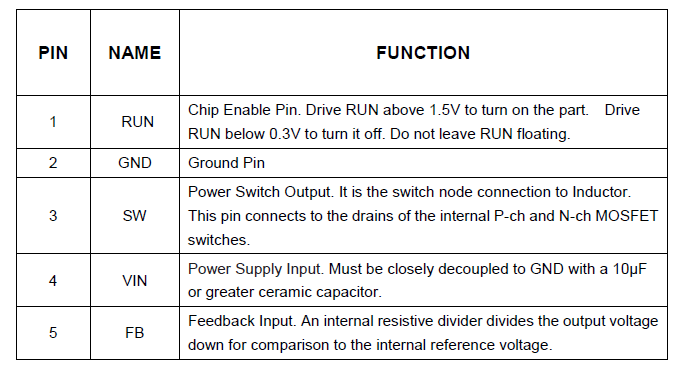

   产品特点 返回TOPC15嘉泰姆

C15嘉泰姆

C15嘉泰姆

• High Efficiency: Up to 96%C15嘉泰姆

• 1.5MHz Constant Frequency OperationC15嘉泰姆

• 1.3A Output CurrentC15嘉泰姆

• No Schottky Diode RequiredC15嘉泰姆

• 2.3V to 6V Input Voltage RangeC15嘉泰姆

• Adjustable Output Voltage Range Options from 0.6V to VinC15嘉泰姆

• 100% Duty Cycle Low Dropout OperationC15嘉泰姆

• Low Quiescent Current: 35μAC15嘉泰姆

• Slope Compensated Current Mode Control for Excellent Line and C15嘉泰姆

   Load Transient ResponseC15嘉泰姆

• Short Circuit ProtectionC15嘉泰姆

• Thermal Fault ProtectionC15嘉泰姆

• Inrush Current Limit and Soft StartC15嘉泰姆

•<1μA Shutdown CurrentC15嘉泰姆

• Tiny SOT23-5 PackageC15嘉泰姆

· 高效率：高达96％&nbsp;
C15嘉泰姆

·1.5MHz固定频率工作
C15嘉泰姆

·1300MA输出电流C15嘉泰姆

·无需肖特基二极管C15嘉泰姆

·2.3V至</span>6V输入电压范围
C15嘉泰姆

·输出电压低至0.6V
C15嘉泰姆

·低静态电流：35&mu;A
C15嘉泰姆

·斜坡补偿电流模式控制出色的线路和负载瞬态响应</span>
C15嘉泰姆

·过压保护
C15嘉泰姆

·过热保护功能C15嘉泰姆

·内部电流限制和软启动C15嘉泰姆

·<1&mu;A关断电流
C15嘉泰姆

·SOT23-5封装C15嘉泰姆

   应用范围 返回TOPC15嘉泰姆

C15嘉泰姆

• Cellular and Smart PhonesC15嘉泰姆

• Wireless and DSL ModemsC15嘉泰姆

• PDAsC15嘉泰姆

• Digital Still and Video CamerasC15嘉泰姆

• MP3 PlayersC15嘉泰姆

   技术规格书（产品PDF) 返回TOP C15嘉泰姆

     需要详细的PDF规格书请扫一扫微信联系我们，还可以获得免费样品以及技术支持</span>！</span>
