JTMA7300 is a 2A synchronous buck converter with integrated

一,产品概述(General Description)
JTMA7300 is a 2A synchronous buck converter with integrated power MOSFETs.
The JTMA7300 design with a current-mode control scheme, can convert wide input
voltage of 4.5V to 24V to the output voltage adjustable from 0.925V to 20V to provide excellent output voltage regulation.
The JTMA7300 is equipped with an automatic PFM/PWM mode operation. At light
load, the IC operates in the PFM mode to reduce the switching losses. At heavy load, the
IC works in PWM.
The JTMA7300 is also equipped with Power-on-reset,soft- start, soft-stop, and whole protections (under-voltage, over-temperature, and current-limit) into a single package.
This device, available SOP-8, provides a very compact system solution external components and PCB area.

二.产品特点(Features)
Wide Input Voltage from 4.5V to 24V
2A Continuous Output Current
Adjustable Output Voltage from 0.925V to 20V
Intergrated High/Low Side MOSFET
PFM/PWM mode Operation
Fixed 340kHz Switching Frequency
Stable with Low ESR Ceramic Output Capacitors
Power-On-Reset Detection
Programmable Soft-Start
Over-Temperature Protection
Current-Limit Protection with Frequency Foldback
Enable/Shutdown Function
Small SOP-8 Package
Lead Free and Green Devices Available (RoHS Compliant)
三,应用范围 (Applications)

LCD Monitor/TV

Set-Top Box
DSL, Switch HUB
Notebook Computer

四.下载产品资料PDF文档

jtma7300

jtma7301

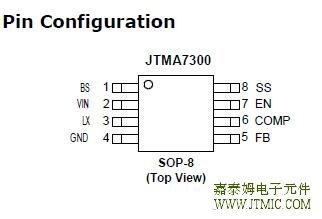

五,产品封装图 (Package)

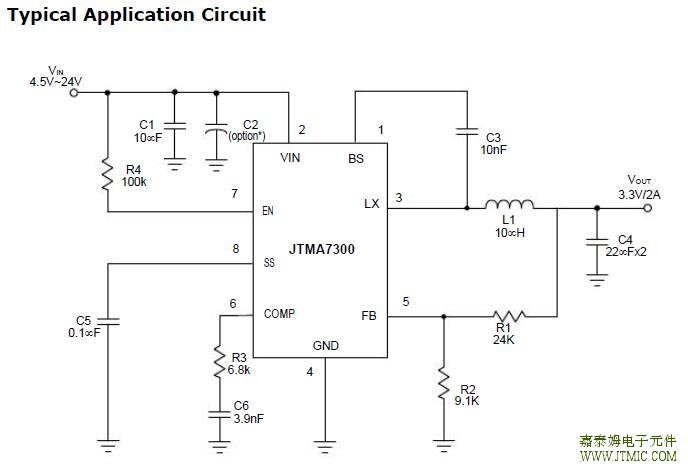

六.电路原理图
