一,产品概述(General Description) JTMA7302 is a 2A synchronous buck converter with integrated power MOSFETs. The JTMA7302 design with a current-mode control scheme, can convert wide input voltage of 4.5V to 24V to the output voltage adjustable from 0.92V to 20V to provide excellent output voltage regulation. The JTMA7302 is also equipped with Power-on-reset, softstart, and whole protections (over-temperature, and current-limit) into a single package.This device, available SOP-8, provides a very compact system solution external components and PCB area 二.产品特点(Features) Wide Input Voltage from 4.5V to 24V 2A Continuous Output Current Adjustable Output Voltage from 0.92V to 20V Intergrated N-MOSFET Fixed 340kHz Switching Frequency Stable with Low ESR Capacitors Power-On-Reset Detection Programmable Soft-Start Over-Temperature Protection Over-Voltage Protection Current-Limit Protection with Frequency Foldback Enable/Shutdown Function Small SOP-8 Package Lead Free and Green Devices Available (RoHS Compliant) 三,应用范围 (Applications)
LCD Monitor/TV
DSL, Switch HUBSet-Top Box Notebook Computer 四.下载产品资料PDF文档

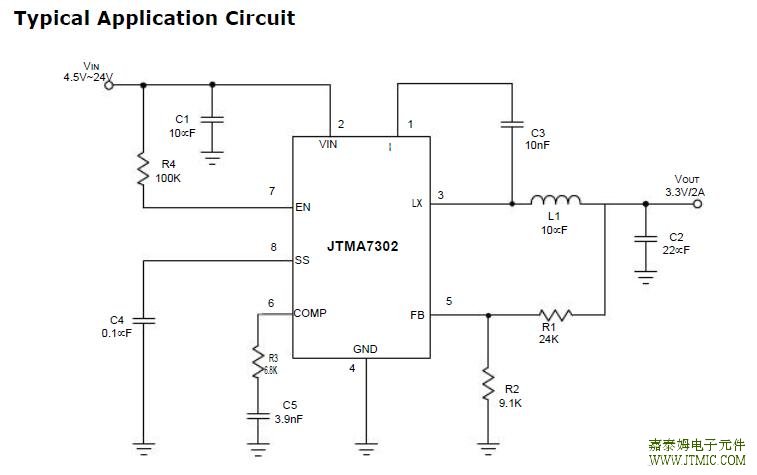

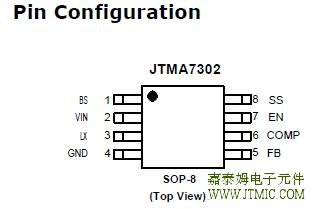

五,产品封装图 (Package)  六.电路原理图  (责任编辑：oumao18) |
