一,产品概述(General Description)

The JTMX8913 is a monolithic high voltage switching regulator with PFM
that is specifically designed to operate from a 24V~80V DC supply.
The JTMX8913 is a high efficiency LED driver switching regulator. The LED string is driven at DC constant current rather than constant voltage, thus providing constant current output and enhanced reliability.
二.产品特点(Features)

Wide 24V to 80V Input Voltage Range
0.2V current sense voltage reference.
Directly drive 3~8 series LED.
Excellent line and load regulation.
High efficiency up to 96%.
Internal optimize power HV-MOSFET.
Built in thermal shutdown function.
Built in UVLO function.
Built in current limiting function.
Built in LED open & short protection.
Built in soft-start circuit.
Available in TO252-5L package.
三,应用范围 (Applications)

EBIKE LED Lighting
LED Lighting & LED LAMP
General purpose lighting
四.技术规格书下载（产品PDF）

JTMX8913

五,产品封装图 (Package)

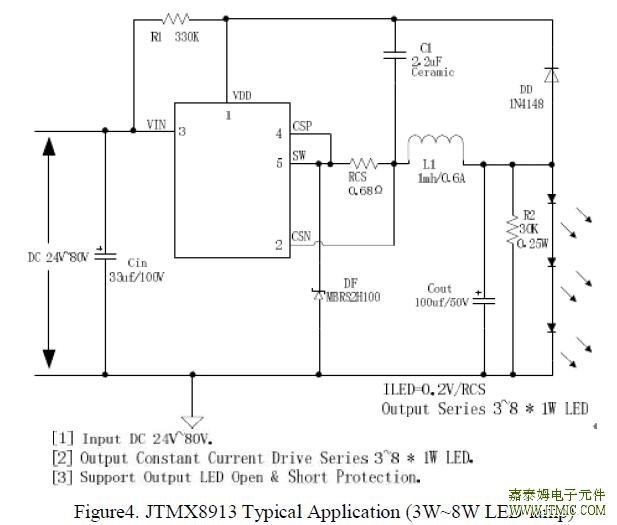

六.电路原理图

七,功能概述

Pin Number	Pin Name	Description
1	VDD	The chip supply voltage.
2	CSN	Current Sense Negative Terminal.
3	VIN	Input high voltage Pin. (Operation voltage 24V~ 80V)
4	CSP	Current Sense Positive Terminal.
5	SW	Output Switching Pin.

八,相关芯片选择指南

产品型号	输入电压	最大输出电压	输出电流	开关频率	恒流设置	封装形式
JTMX8912	12V ~ 80V	1~18LED串	1A	PFM	Adj (0.1V)	TO263-5L
JTMX8913	24V ~ 80V	3~14LED串	1A	PFM	Adj (0.2V)	TO252-5L
JTMX8915	24V ~ 100V	3~8LED串	0.5A	PFM	Adj (0.2V)	SOP8L
