一,产品概述(General Description)

The JTMT101XCL series is a synchronous step-up micro DC/DC converter which integrates an inductor and a control IC
in one tiny package (2.5mm×2.0mm, H=1.0mm). A stable step-up power supply is configured using only two capacitors connected
externally. An internal coil simplifies the circuit and enables minimization of noise and other operational trouble due to the
circuit wiring. The JTMT101XCL series can be used in applications that start from a single alkaline or nickel-metal hydride battery
because the input voltage range is 0.9V ~ 5.5V. The output voltage can be set from 1.8V to 5.0V (±2.0%) in steps of 0.1V.
PFM control enables a low quiescent current, making these products ideal for portable devices that require high efficiency.
The JTMT101XCL features a load disconnect function to break continuity between the input and output at shutdown
(JTMT101XCLA),and a bypass mode function to maintain continuity between the input and output (JTMT101XCLC).
二.产品特点(Features)

Input Voltage Range :0.9V~5.5V
Output Voltage Range :1.8V~5.0V (±2.0%) 0.1V increment
Output Current :100mA＠VOUT=3.3V, VBAT=1.8V (TYP.)
Supply Current :6.3μA (VBAT=VOUT+0.5V)
Control Method :PFM Control
PFM Switching Current :350mA
Functions :Load Disconnection Function or Bypass Mode Function Ceramic Capacitor Compatible
Operating Ambient Temperature :-40ºC ~ +85ºC
Package :CL-2025, CL-2025-02
三,应用范围 (Applications)

●Wearable devices
●Mobile phones, Smart phones
●Mouses, Keyboards
●Remote controls
●Portable information devices
●Game consoles
四.技术规格书下载（产品PDF）

Inductor Built-in JTMT101XCL

五,产品封装图 (Package)

Inductor Electrodes

PIN NUMBER	PIN NAME	FUNCTIONS
1	LX	Switching
2	VOUT	Output Voltage
3	VBAT	Power Input
4	CE	Chip Enable
5	NC	No Connection
6	VSS	Ground
7	L1	Inductor Electrodes
8	L2	Inductor Electrodes

六.电路原理图

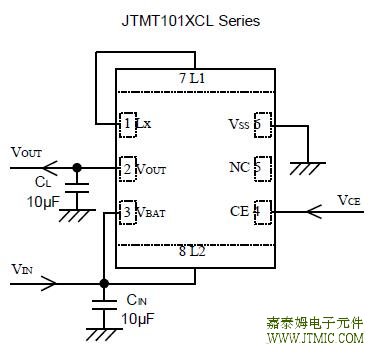

TYPICAL APPLICATION CIRCUIT JTMT101XCL Series

七,功能概述

PARAMETER		SYMBOL	RATINGS	UNITS
VBAT Pin Voltage		VBAT	-0.3 ～ +7.0	V
LX Pin Voltage		VLX	(*1) -0.3 ～ VOUT+0.3 or +7.0	V
VOUT Pin Voltage		VOUT	-0.3 ～ +7.0	V
CE Pin Voltage		VCE	-0.3 ～ +7.0	V
LX Pin Current		ILX	700	mA
Power Dissipation		Pd	(*2) 1000	mW
Operating Ambient Temperature		Topr	- 40 ～ +85	ºC
Storage (*3) Temperature	CL-2025	Tstg	- 40 ～ +105	ºC
Storage (*3) Temperature	CL-2025-02	Tstg	- 40 ～ +125	ºC

八,相关芯片选择指南

系列名称	特点	输入电压		输出电压		最大输出电流	振荡频率	内置FET	封装
		(V)		(V)		(mA)
		最小	最大	最小	最大
JTMT101XCL	Inductor Built-in Step-up	0.9	5.5	1.8	5	100	1.2MHz	P-ch FET	CL-2025
								N-ch FET	CL2025-02
JTMT201XCL	Inductor Built-in	2	6	0.8	4	400	1.2MHz	N-ch FET	CL-2025
JTMT202XCL								P-ch FET	CL2025-02
JTMT205XCL	Inductor Built-in	2	6	0.8	4	600	3.0MHz	N-ch FET	CL-2025
JTMT206XCL								P-ch FET	CL2025-02
JTMT207XCL
JTMT208XCL	Inductor Built-in	1.8	6	0.8	4	400	3.0MHz	N-ch FET	USP-10B03
JTMT209XCL								P-ch FET
JTMT210XCL	Inductor Built-in	2	6	1	4	-	-	Pch	CL2025-02
								Nch
JTMT211XCL	Inductor Built-in	2.7	6	0.9~VIN		2000	2.4MHz	N-ch FET	USP-11B01
JTMT212XCL								P-ch FET
JTMT213XCL	Inductor Built-in	2.7	5.5	0.8	3.6	1500	3.0MHz	N-ch FET	USP-9B01
JTMT214XCL								P-ch FET
JTMT219XCL	Inductor Built-in	2.5	5.5	0.8	3.6	1000	3.0MHz	N-ch FET	CL2025-02
JTMT220XCL								P-ch FET

JTMT221XCL	Inductor Built-in	2.5	5.5	0.8	3.6	500	1.2MHz	N-ch FET	CL2025-02
JTMT222XCL								P-ch FET
