一,产品概述(General Description)

The JTMT213/JTMT214 series is a synchronous step-down micro DC/DC converter which integrates an
inductor and a control IC in one tiny package (2.5mm×3.2mm, h=1.0mm). An internal coil simplifies the circuit
and enables minimization of noise and other operational trouble due to the circuit wiring. A wide operating voltage
range of 2.7V to 5.5V enables support for applications that require an internally fixed output voltage (0.8V to 3.6V). The JTMT213/JTMT214 series uses synchronous rectification at an operating frequency of 3.0MHz. The JTMT213/JTMT214
series uses HiSAT-COT (*) synchronous rectification. HiSAT-COT+PWM control (JTMT213) or HiSAT-COT+automatic
PWM/PFM switching control (JTMT214) can be selected.The series have a high speed soft-start as fast as 0.3ms in
typical for quick turn-on. With the built-in UVLO (Under Voltage Lock Out) function, the internal P-channel driver
transistor is forced OFF when input voltage becomes 2.0V or lower. When CE=Low, the integrated CL discharge
function which enables the electric charge at the output capacitor CL to be discharged via the internal discharge
switch located between the LX and VSS pins. The power consumption will be less than 1.0μA.HiSAT-COT is an
original JIATAIMU term for High Speed Transient Response.
二.产品特点(Features)

Input Voltage : 2.7V～5.5V
Output Voltage : 0.8V～3.6V
Oscillation Frequency : 3.0MHz
Output Current : 1.5A
Efficiency : 92% (VIN=5.0V, VOUT=3.3V/500mA)
Control Methods : HiSAT-COT 100% Duty Cycle HiSAT-COT+PWM (XCL213) HiSAT-COT+PWM/PFM (XCL214)
Circuit Protection : Thermal Shut Down Current Limit Circuit (Drop) Short Circuit Protection (Latch)
Functions : Soft-start Circuit Built-in UVLO CL Discharge
Output Capacitor : Low ESR Ceramic Capacitor
Operating Ambient Temperature : -40℃～+85℃ Package : USP-9B01
Environmental Friendly : EU RoHS Compliant, Pb Free
三,应用范围 (Applications)

●Note Book PC
●Tablet PC
●SSD
●Mobile phone
●Projector
●Printer
四.技术规格书下载（产品PDF）

JTMT213/JTMT214

五,产品封装图 (Package)

PIN NUMBER	PIN NAME	FUNCTIONS
1	VIN	Power Input
2	NC	No Connection
3	Lx	Switching Output
4	VOUT	Fixed Output Voltage PIN
5	AGND	Analog Ground
6	CE	Chip Enable
7	PGND	Power Ground
8	L1	Inductor Electrodes
9	L2	Inductor Electrodes

六.电路原理图

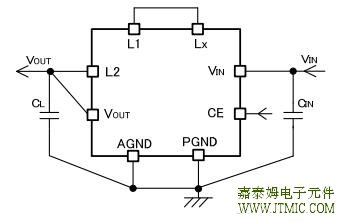

JTMT213/JTMT214 TYPICAL APPLICATION CIRCUIT

七,功能概述

PARAMETER	SYMBOL	RATINGS
VIN Pin Voltage	VIN	-0.3 ~ + 6.2
LX Pin Voltage	VLx	(*1) - 0.3 ~ VIN + 0.3 or + 6.2
VOUT Pin Voltage	Vout	(*2) - 0.3 ~ VIN + 0.3 or + 4.0
CE Pin Voltage	VCE	- 0.3 ~ + 6.2
Power Dissipation	Pd	1200
Operating Ambient Temperature	Topr	- 40 ~ + 85
Storage Temperature	Tstg	- 55 ~ + 125

八,相关芯片选择指南

系列名称	特点	输入电压		输出电压		最大输出电流	振荡频率	内置FET	封装
		(V)		(V)		(mA)
		最小	最大	最小	最大
JTMT101XCL	Inductor Built-in Step-up	0.9	5.5	1.8	5	100	1.2MHz	P-ch FET	CL-2025
								N-ch FET	CL2025-02
JTMT201XCL	Inductor Built-in	2	6	0.8	4	400	1.2MHz	N-ch FET	CL-2025
JTMT202XCL								P-ch FET	CL2025-02
JTMT205XCL	Inductor Built-in	2	6	0.8	4	600	3.0MHz	N-ch FET	CL-2025
JTMT206XCL								P-ch FET	CL2025-02
JTMT207XCL
JTMT208XCL	Inductor Built-in	1.8	6	0.8	4	400	3.0MHz	N-ch FET	USP-10B03
JTMT209XCL								P-ch FET
JTMT210XCL	Inductor Built-in	2	6	1	4	-	-	Pch	CL2025-02
								Nch
JTMT211XCL	Inductor Built-in	2.7	6	0.9~VIN		2000	2.4MHz	N-ch FET	USP-11B01
JTMT212XCL								P-ch FET
JTMT213XCL	Inductor Built-in	2.7	5.5	0.8	3.6	1500	3.0MHz	N-ch FET	USP-9B01
JTMT214XCL								P-ch FET
JTMT219XCL	Inductor Built-in	2.5	5.5	0.8	3.6	1000	3.0MHz	N-ch FET	CL2025-02
JTMT220XCL								P-ch FET

JTMT221XCL	Inductor Built-in	2.5	5.5	0.8	3.6	500	1.2MHz	N-ch FET	CL2025-02
JTMT222XCL								P-ch FET
