一,产品概述(General Description)

The JTMT9106/JTMT9107 series are reference voltage (Vref) apply external step-up DC/DC controller ICs. Output voltage will be
set with external resistors (RFB1 and 2) and Vref value. The series make it easy to control output voltage externally and are
suited to software applications that need to vary voltage, such as LCD power supply for PDA. Output will be stable no matter
which load capacitors are used but if a low ESR capacitor is used, RSENSE of about 0.1 will be required and phase compensation
will be achieved. This makes the use of ceramic capacitors much easier, and allows for lower output ripple and reduced PCB
area requirements. Tantalum and electrolytic capacitors can also be used, in which case, RSENSE becomes unnecessary.
Oscillation frequencies of high clock, low ripple 300kHz and low supply current 100kHz are available. The JTMT9107 series are
PWM controlled. Control switches from PWM to PFM during light loads with the JTMT9107 and the series is highly efficient from
light loads to large output currents.
二.产品特点(Features)

Input Voltage Range	0.9V~10.0V
Power Supply Voltage Range	1.8V~10.0V and more than Vref+0.7V
VREF Input Range	0.8V~2.5V (±2.0%)
Output Voltage	Vref x external split resistor ratio,VOUT=Vref x (RFB1+RFB2)/FRB2
Oscillation Frequency	100kHz,300kHz ±15%
Output Current	more than 30mA,(VIN=3.3V, VOUT=20V, when peripheral components are used as in the circuits below .)
Controls	PWM (JTMT9106),PWM/PFM auto-swiching Control(JTMT9107)
High Efficiency	85%(TYP.)
Stand-by Current	ISTB=1.0μA (MAX.)
Load Capacitors	Low ESR capacitors compatible
Packages	SOT-25,USP-6B

三,应用范围 (Applications)

●Power supply for LCDs
●E-book Readers / Electronic dictionaries
●Smart phones / Mobile phones
●Note PCs / Tablet PCs
●Digital audio equipments
●Multi-function power supplies
四.技术规格书下载（产品PDF）

JTMT9106/JTMT9107

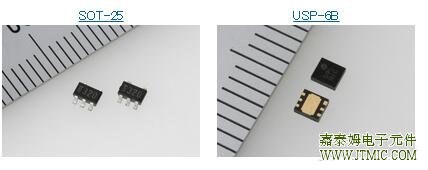

五,产品封装图 (Package)

六.电路原理图

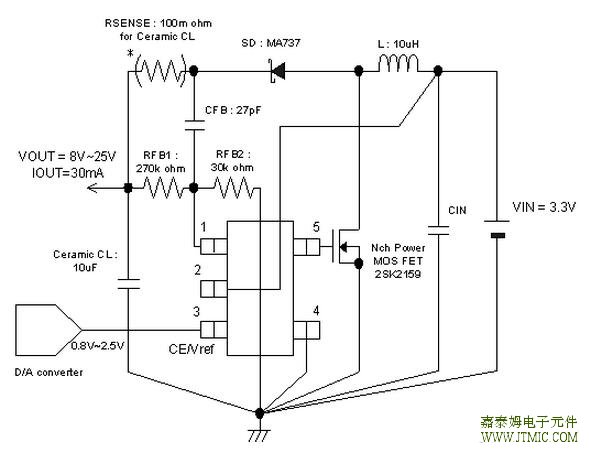

JTMT9106/JTMT9107 TYPICAL APPLICATION CIRCUIT

七,功能概述

PARAMETER		SYMBOL	RATINGS	UNITS
VDD pin Voltage		VDD	-0.3～12.0	V
FB Pin Voltage		VFB	-0.3～12.0	V
CE / Vref pin Voltage		VCE / Vref	-0.3～12.0	V
EXT pin Voltage		VEXT	-0.3～VDD+0.3	V
EXT pin Current		IEXT/	±100	mA
Power Dissipation	SOT-25	Pd	150	mW
Power Dissipation	USP-6B	Pd	100	mW
Operating Temperature Range
Topr	-40～+85	O C
Storage Temperature Range		Tstg	-55～+125	O C

八,相关芯片选择指南

系列名称	特点	输入电压		输出电压		最大输出电流	振荡频率	内置FET	封装
		(V)		(V)		(mA)
		最小	最大	最小	最大
JTMT6367	PWM/PFM	0.9	10	1.5	6.5	1000	100kHz	None	SOT-25
JTMT6368							180kHz
							300kHz
							500kHz
JTMT6371	PWM/PFM	0.9	10	2	7	100	50kHz	Nch FET	SOT-89
JTMT6372							100kHz		SOT-89-5
							180kHz		USP-6B
JTMT9101	PWM	2.5	20	2.2	30	1500	100~600kHz	None	MSOP-8A
JTMT9103	PWM/PFM	0.9	10	1.5	30	1000	100kHz	None	SOT-25
JTMT9104							180kHz		USP-6B
JTMT9105							300kHz
							500kHz
JTMT9106	PWM/PFM	0.9	10	1.5	30	1000	100kHz	None	SOT-25
JTMT9107							300kHz		USP-6B
JTMT9110	PFM	0.9	10	1.5	7	100	100kHz	Nch FET	SOT-23
JTMT9111									SOT-25
									SOT-89
									USP-6C
JTMT9116	Backlight LED Driver	2.5	6	8	18	20	1MHz	Nch FET	SOT-25
									USP-6B
JTMT9119	PWM	2.5	6	10	18	100	1MHz	Nch FET	SOT-25
									USP-6C
JTMT9120	PWM/PFM	0.9	6	1.5	30	80	100kHz	None	SOT-25
JTMT9121									USP-6C
JTMT9122
JTMT9128	1A Driver Transistor Built-In	0.8	6	1.8	5.3	500	1.2MHz	Nch FET	MSOP-10
JTMT9129								Pch FET	USP-10B
JTMT9131	Load Disconnection Function	0.65	5.5	1.8	5	500	1.2MHz	Nch FET	USP-10B
								Pch FET
JTMT9133	LED Backlight	2.5	6	2.5	17.5	20	1MHz	MOSFET	SOT-25
JTMT9135	1A Driver Transistor Built-In	0.65	5.5	1.8	5	500	1.2MHz	Nch FET	USP-10B
JTMT9136								Pch FET
JTMT9140	Synchronous PFM	0.9	5.5	1.8	5	100	-	N-ch Driver Tr	SOT-25
								P-ch Synchronous Switch Transistor	USP-6EL
JTMT9141	Load Disconnection Function	0.65	6	1.8	5.5	350	1.2MHz	Nch FET	SOT-25
JTMT9142							3.0MHz	Pch FET	USP-6C
									WLP-6-01
