JTMX6005 JTMX6006 fixed frequency PWM Boost (step-up) LED

1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（产品PDF文档）
5.产品封装图 6.电路原理图 7.功能概述 8.相关产品

一,产品概述(General Description)

The JTMX6006 regulator is fixed frequency PWM Boost (step-up) LED
constant current driver, capable of driving Series 1W/3W/5W LED units with excellent line and load regulation. The regulator is simple to use because it
includes internal frequency compensation and a fixed-frequency oscillator

so that it requires a minimum number of external components to work.
The JTMX6006 could directly drive 16 Series 1W/3W LED units at VIN=24V .
The JTMX6005 regulator is fixed frequency PWM Boost (step-up) LED constant current driver,capable of driving Series 1W/3W/5W LED units with excellent
line and load regulation. The regulator is simple to use because it includes
internal frequency compensation and a fixed-frequency oscillator so that it
requires a minimum number of external components to work.
The JTMX6005 could directly drive 11 Series 1W LED units at VIN>12V .
The PWM control circuit is able to adjust the duty ratio linearly from 0 to
90%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.

二.产品特点(Features)

Wide 5V to 32V Input Voltage Range
Maximum Boost Output Up to 60V
0.22V FB adjustable LED drive current
Directly drive 16 Series 1W/3W LED at
VIN=24V
Fixed 180KHz Switching Frequency
Max. 5A Switching Current Capability
Up to 94% efficiency
Excellent line and load regulation
EN PIN TTL shutdown capability
Internal Optimize Power MOSFET
Built in Soft-Start Function
Built in Frequency Compensation
Built in Thermal Shutdown Function
Built in Current Limit Function
Available in TO263-5L package

三,应用范围 (Applications)

LED Lighting
Boost constant current driver
TFT LED Backlighting

四.技术规格书下载（产品PDF）

JTM6006

JTMX6005

五,产品封装图 (Package)

Pin Number	Pin Name	Description
1	GND	Ground Pin.
2	EN	Enable Pin. Drive EN pin low to turn off the device, drive it high to turn it on. Floating is default high.
3	SW	Power Switch Output Pin (SW).
4	VIN	Supply Voltage Input Pin. JTMX6006 operates from a 5V to 32V DC voltage. Bypass Vin to GND with a suitably large capacitor to eliminate noise on the input.
5	FB	Feedback Pin (FB). The feedback threshold voltage is 0.22V.

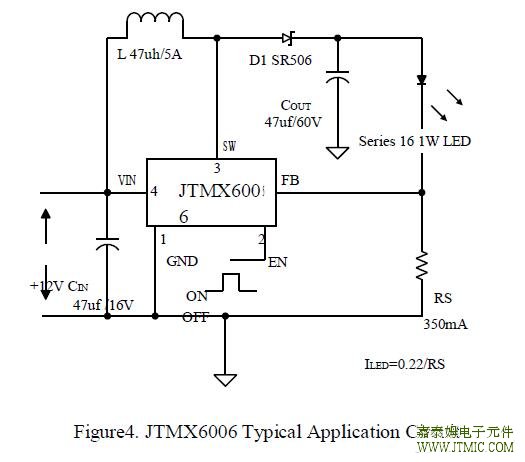

六.电路原理图

七,功能概述

Parameter	Symbol	Value	Unit
Input Voltage	Vin	-0.3 to 36	V
Feedback Pin Voltage	VFB	-0.3 to Vin	V
EN Pin Voltage	VEN	-0.3 to Vin	V
Output Switch Pin Voltage	VOutput	-0.3 to 60	V
Power Dissipation	PD	Internally limited	mW
Thermal Resistance (TO263-5L) (Junction to Ambient, No Heatsink, Free Air)	RJA	30	ºC/W
Operating Junction Temperature	TJ	-40 to 125	ºC

八,相关芯片选择指南

产品型号	输入电压	最大输出电压	开关电流	开关频率	恒流设置	封装形式
XL6001	3.6V ~ 24V	32V	2A	400KHz	Adj (0.22V)	SOP8L
XL6003	5V ~ 40V	60V	2A	400KHz	Adj (0.22V)	SOP8L
XL6013	5V ~ 40V	60V	2A	400KHz	Adj (0.22V)	SOP8L
XL6005	3.6V ~ 32V	60V	4A	180KHz	Adj (0.22V)	TO252-5L
XL6006	5V ~ 32V	60V	5A	180KHz	Adj (0.22V)	TO263-5L
