The JTMH2101 is 300mA low dropout linear regulator optimized

1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（产品PDF文档）
5.产品封装图 6.电路原理图 7.功能概述 8.相关产品

一,产品概述(General Description)

The JTMH2101 is 300mA low dropout linear regulator optimized to provide a high
performance solution to low power system.The device offers a new level of
cost-effective performance in cellular phones, laptop and notebook computers,and
other portable devices. Proprietary design techniques ensure high performance.
The JTMH2101 is designed to make use of low cost ceramic capacitors which
ensure the stability of the output current, and enhance the efficiency in order to
prolong the battery life of those portable devices.
The JTMH2101 regulators are available in the industry standard
DFN1.2*1.6-4L/DFN2*2-6L power packages (or upon request).
二.产品特点(Features)

300mA Output Current
Low Quiescent Current: 60μA
Input Voltage: 3V ～ 5.5V
0.47μF ～ 10μF Ceramic Capacitors Ensure the Stability
Overload/Over Temperature Protection
Package: DFN1.2*1.6-4L/DFN2*2-6L
(lead-free packaging is now available)
Specified from: -40℃ ～ +85℃
三,应用范围 (Applications)

MP3/MP4 Players
Cellular phones, radiophone, digital cameras,
and portable electronics
Laptop/notebook/palmtop computers
Portable devices
Disk driver
Battery chargers
Bluetooth and other radio products
四.技术规格书下载（产品PDF）

JTMH2101

五,产品封装图 (Package)

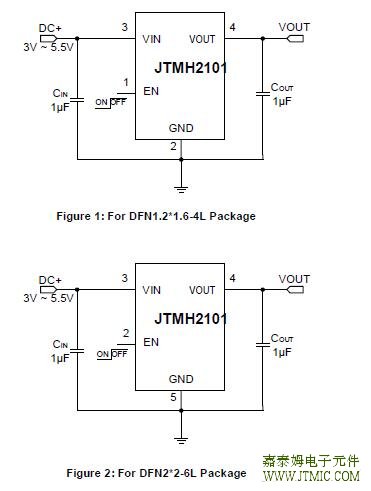

六.电路原理图

七,功能概述

Supply Input Voltage ……………………………………………….……….…………………….-0.3V ～ 6V
EN Input Voltage ………………………………………………………….…………………….…-0.3V ～ 6V
Operating Temperature Range(Note 2)……..……………………………...…….………...-40°C ～ +85℃
Junction Temperature Range ……………………………………….…………...……….. -40°C ～ +125℃
Storage Temperature Range …………………………………………………….…………-65℃ ～ +150℃
Lead Temperature (Soldering, 10 sec.) …….………………………...………………………….……+265℃
