JTMT210 series 50mA/200mA Inductor Built-in Step-Down “micro

1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（产品PDF文档）
5.产品封装图 6.电路原理图 7.功能概述 8.相关产品

一,产品概述(General Description)

The JTMT210 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one
tiny package (2.0mm×2.5mm, h=1.0mm). An internal coil simplifies the circuit and enables minimization of noise and other
operational trouble due to the circuit wiring. A wide operating voltage range of 2.0V to 6.0V enables support for applications
that require an internally fixed output voltage from 1.0V to 4.0V in increments of 0.05V.
During stand-by, all circuits are shutdown to reduce currentconsumption to as low as 0.1μA or less.
With the built-in UVLO (Under Voltage Lock Out) function, the internal P-channel MOS driver transistor is forced OFF when
input voltage becomes UVLO ditect Voltage or lower.
The JTMT210 integrate CL discharge function which enables the electric charge at the output capacitor CL to be discharged via
the internal discharge switch located between the LX and VSS pins. When the devices enter stand-by mode, output voltage
quickly returns to the VSS level as a result of this function
二.产品特点(Features)

Input Voltage : 2.0V～6.0V
Output Voltage : 1.0V～4.0V (±2.0%, 0.05V step increments)
Control Methods : PFM control
Output Current : 200mA(XCL210A/XCL210C) 50mA(XCL210B/XCL210D)
Supply Current : 0.5μA
High Efficiency : 93% (VIN=3.6V,VOUT=3.0V/100μA)
Function : UVLO Short Circuit Protection CL Discharge
Capacitor : Low ESR Ceramic Capacitor
Operating Ambient Temperature : -40℃～+85℃
Packages : CL-2025-02
Environmentally Friendly : EU RoHS Compliant, Pb Free
三,应用范围 (Applications)

● Wearable Devices
● Smart meters
● Bluetooth units
● Energy Harvest devices
● Back up power supply circuits
● Portable game consoles
● Devices with 1 Lithium cell
四.技术规格书下载（产品PDF）

JTMT210 Series

五,产品封装图 (Package)

PIN NUMBER	PIN NAME	FUNCTIONS
1	LX	Switching
2	GND	Ground
3	VOUT	Output Voltage
4	CE	Chip Enable
5	NC	Ground
6	VIN	Power Input
7	L1	Inductor Electrodes
8	L2	Inductor Electrodes

六.电路原理图

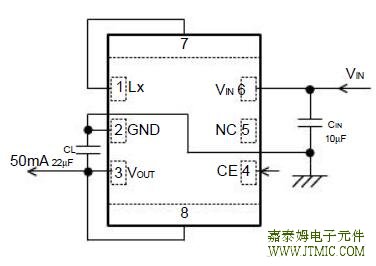

JTMT210 Series TYPICAL APPLICATION CIRCUIT

七,功能概述

PARAMETER	SYMBOL	RATINGS	UNITS
VIN Pin Voltage	VIN	-0.3 ~ +7.0	V
LX Pin Voltage	VLX	(*1) -0.3 ~ VIN+0.3 or +7.0	V
VOUT Pin Voltage	VOUT	(*1) -0.3 ~ VIN+0.3 or +7.0	V
CE Pin Voltage	VCE	-0.3 ~ +7.0	V
LX Pin Current	ILX	1000	mA
Power Dissipation	Pd	(*2) 1000	mW
Operating Ambient Temperature	Topr	-40 ~ +85	˚C
Storage Temperature	Tstg	-55 ~ +125	˚C

八,相关芯片选择指南

系列名称	特点	输入电压		输出电压		最大输出电流	振荡频率	内置FET	封装
		(V)		(V)		(mA)
		最小	最大	最小	最大
JTMT101XCL	Inductor Built-in Step-up	0.9	5.5	1.8	5	100	1.2MHz	P-ch FET	CL-2025
								N-ch FET	CL2025-02
JTMT201XCL	Inductor Built-in	2	6	0.8	4	400	1.2MHz	N-ch FET	CL-2025
JTMT202XCL								P-ch FET	CL2025-02
JTMT205XCL	Inductor Built-in	2	6	0.8	4	600	3.0MHz	N-ch FET	CL-2025
JTMT206XCL								P-ch FET	CL2025-02
JTMT207XCL
JTMT208XCL	Inductor Built-in	1.8	6	0.8	4	400	3.0MHz	N-ch FET	USP-10B03
JTMT209XCL								P-ch FET
JTMT210XCL	Inductor Built-in	2	6	1	4	-	-	Pch	CL2025-02
								Nch
JTMT211XCL	Inductor Built-in	2.7	6	0.9~VIN		2000	2.4MHz	N-ch FET	USP-11B01
JTMT212XCL								P-ch FET
JTMT213XCL	Inductor Built-in	2.7	5.5	0.8	3.6	1500	3.0MHz	N-ch FET	USP-9B01
JTMT214XCL								P-ch FET
JTMT219XCL	Inductor Built-in	2.5	5.5	0.8	3.6	1000	3.0MHz	N-ch FET	CL2025-02
JTMT220XCL								P-ch FET

JTMT221XCL	Inductor Built-in	2.5	5.5	0.8	3.6	500	1.2MHz	N-ch FET	CL2025-02
JTMT222XCL								P-ch FET
