一,产品概述(General Description) The JTMT1465 equipped with Power-on-reset, soft start and whole protections (under-voltage, over temperature and current-limit) into a single package.This device, available SOT23_6 provides a very compact system solution of external components and PCB area. 二.产品特点(Features) Wide Input Voltage from 4.5V to 40V 600mA Output Current High Efficiency over 85% from Load Current 30mA to 100mA @ VOUT>=5V Low EMI Converter Adjustable Output Voltage from 0.8V to 75%VIN Integrated 900mΩ High/Low Side MOSFET 1M or 2Mhz Switching Frequency Stable with Low ESR Capacitors Power-On-Reset Detection Over-Temperature Protection Current-Limit Protection Enable/ShuJTMTown Function Available in SOT-23-6 packages Lead Free and Green Devices Available (RoHS compliant). 三,应用范围 (Applications) Smart Electronic equipments 四.下载产品资料PDF文档

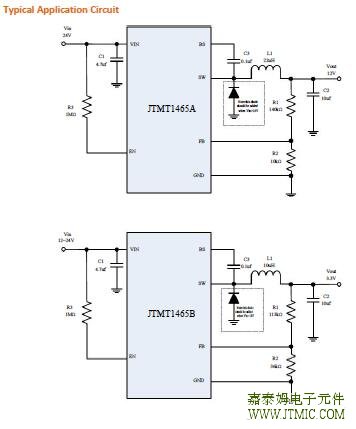

 六.电路原理图  (责任编辑：oumao18) |
