一,产品概述(General Description)

The JTMA1206 family of devices are ultra low dropout 1A regulators using PNP transistor
as the pass element.These products are ideal when a single input supply is only available and
the dropout voltage is less than 1V,exceeding the minimum dropout characteristics of NPN/
PNP hybrid regulators. One common application of these regulators is where input is 3.3V
and a 2.5V output is needed.
Besides the low dropout of less than 0.5V, other fea-tures of the family of the parts are:
micro-power shut-down capability and output UVLO detection where Flag pin is switched low
when output is below 5% of its nomi-nal point.
二.产品特点(Features)

Low Dropout Voltage (500mV at 1A)
2% Voltage Reference Accuracy
Low Ground Current
1µA Maximum Quiescent Current in Shutdown
(JTMA1207, JTMA1208)
Fast Transient Response
Current Limit and Thermal Shutdown
Error Flag Signal for Output out of Regulation
(JTMA1207, JTMA1208)
RoHS Compliant & Halogen Free
三,应用范围 (Applications)

2.5V Supply from 3.3V Input for the new
generation of Logic ICs
Computer Mother Board, Add-On Cards
High Efficiency Post Regulator in Switch Mode
Power Supply (SMPS)
四.技术规格书下载（产品PDF）

JTMA1206/JTMA1207/JTMA1208/JTMA1209

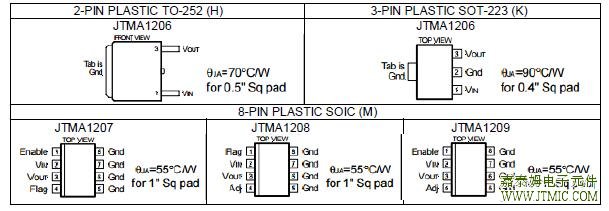

五,产品封装图 (Package)

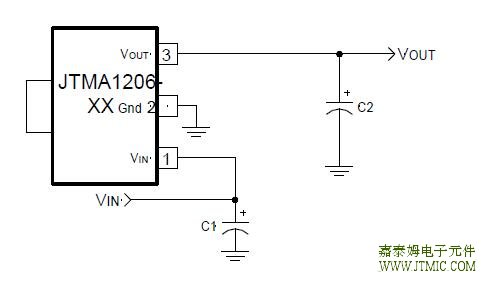

六.电路原理图

七,功能概述

Part Number	Output Voltage
JTMA1206-18	1.8V
JTMA1206-25	2.5V
JTMA1206-33	3.3V
JTMA1207-18	1.8V
JTMA1207-25	2.5V
JTMA1207-33	3.3V
JTMA1208	1.24V
JTMA1209	1.24V

八,相关芯片选择指南

Part Number	Package	Vin (max)	Vout	Max. Current (A)	Current Limit (A)	Quiescent Current Typ. (uA)
JTMA8862U5	SC-70-5L	6	3.3V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V,1.0V	0.6	600	30
JTMA8862Y5	SOT-23-5L	6	3.3V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V,1.0V	0.6	600	30
JTMA8862K	SOT-223	6	3.3V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V,1.0V	0.6	600	30
JTMA8862G	SOT-89	6	3.3V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V,1.0V	0.6	600	30
JTMA8862H	TO-252	6	3.3V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V,1.0V	0.6	600	30
JTMA1205Y5	SOT-23-5L	10	ADJ,3.6V,3.3V,3.0V,2.8V,2.5V,1.8V	0.3	0.42	5
JTMA1209M	SO-8	10	ADJ	1	1.4
JTMA8800A-XXY5P	SOT-23-5L	6	5.0,3.6V,3.3V,3.1V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V	0.3	0.3	30
JTMA8800A-XXTY5P	TSOT-23-5L	6	5.0,3.6V,3.3V,3.1V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V	0.3	0.3	30
JTMA8800N	SOT-23	6	3.6V,3.3V,3.0V,2.8V,2.5V,1.8V,1.5V	0.3	0.3	30
JTMA8800G	SOT-89	6	3.6V,3.3V,3.0V,2.8V,2.5V,1.8V,1.5V	0.3	0.3	30
JTMA8805K	SOT-223	6	3.3V,3.0V,2.8V,2.5V,2.0V,1.8V,1.5V	0.6	0.6	30
JTMA8805G	SOT-89	6	3.3V,3.0V,2.8V,2.5V,2.0V,1.8V,1.5V	0.6	0.6	30
JTMA8805N	SOT-23	6	3.3V,3.0V,2.8V,2.5V,2.0V,1.8V,1.5V	0.6	0.6	30
APU8836Y5	SOT-23-5L	10	ADJ	0.3	0.32	5
APU8850Y5	SOT-23-5L	27	ADJ,5.0V,3.3V,3.0V,2.8V,2.5V,1.8V	0.15	0.2	250
APU8850G	SOT-89	27	ADJ,5.0V,3.3V,3.0V,2.8V,2.5V,1.8V	0.15	0.2	250
APU8850MP	ESOP-8	27	ADJ,5.0V,3.3V,3.0V,2.8V,2.5V,1.8V	0.15	0.2	250
APU8850TY5	TSOT-23-5L	27	ADJ,5.0V,3.3V,3.0V,2.8V,2.5V,1.8V	0.15	0.2	250
APU8850U	J-Lead 2021-8	27	ADJ,5.0V,3.3V,3.0V,2.8V,2.5V,1.8V	0.15	0.2	250
JTMA8862Y5	SOT-23-5L	6	3.3V,3.1V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V,1.0V	0.6	0.6	55
JTMA8865N	SOT-23	6	3.3V~1.5V,1.2V (0.1V Steps)	0.3	0.3	30
JTMA8865Y5	SOT-23-5L	6	3.3V~1.5V,1.2V (0.1V Steps)	0.3	0.3	30
JTMA8865U4	SC-70-4L	6	3.3V~1.5V,1.2V (0.1V Steps)	0.3	0.3	30
JTMA8865U5	SC-70-5L	6	3.3V~1.5V,1.2V (0.1V Steps)	0.3	0.3	30
JTMA8865TY5	TSOT-23-5L	6	3.3V~1.5V,1.2V (0.1V Steps)	0.3	0.3	30
JTMA8866Y5	SOT-23-5L	6	ADJ	0.6	0.6	40
JTMA8866U5	SC-70-5L	6	ADJ	0.6	0.6	40
JTMA8866M	SO-8	6	ADJ	0.6	0.6	40
JTMA8867Y5	SOT-23-5L	6	ADJ	0.3	0.3	40
JTMA8981GN3-A	DFN-3x3-10L	5.5	ADJ	3	3.1
