一,产品概述(General Description)

JTFD2157H is a two-phase half wave motor driver with embedded Hall-effect sensor IC. It integrates a open drain MOS driver, a high sensitivity hall-effect sensor, an event timer for rotor locked in SIP-4L package, which make the motors’ PCBs(printed circuit boards) design easy and fabricate the high efficiency and high voltage DC motors or FANs as simply as possible.
For safety, Lock-shutdown function would turn the IC’s internal drivers off avoiding over-heat when the rotor is locked, and IC will try to re-start the rotor’s torque after the time of these drivers’ shutdown.
Thermal-shutdown protection (TSD) ensures the internal drivers of IC are operating under a safe operating temperature range.
All the protection mechanisms mentioned above combine to provide a complete protecting scenario in the motor system and avoid any possible damages and guarantee under a correct and safe operation
二.产品特点(Features)

˙Motor driver with high sensitivity Hall-effect sensor
˙Open drain MOS driver output
˙Lock-shutdown protection & auto-restart function
˙“Soft-switch” phase-switching technique to reduce vibration and acoustic noise
˙Thermal shutdown protection(TSD)
˙Available in SIP-4L package
˙For 24V DC motor / FAN systems
三,应用范围 (Applications)

Smart motor driver with embedded Hall sensor
四.技术规格书下载（产品PDF）

需要详细的PDF规格书请扫一扫微信联系我们

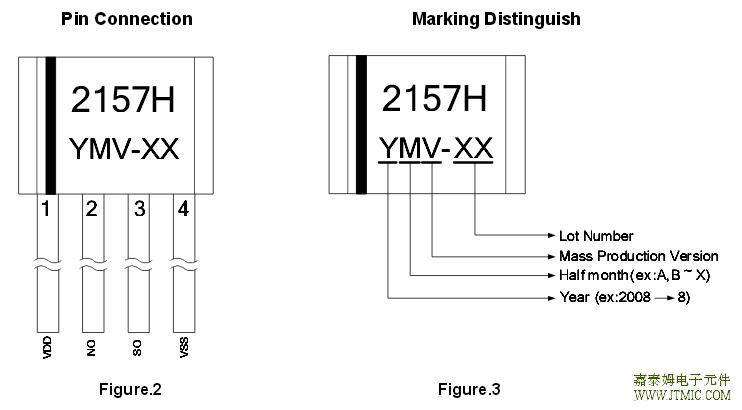

五,产品封装图 (Package)

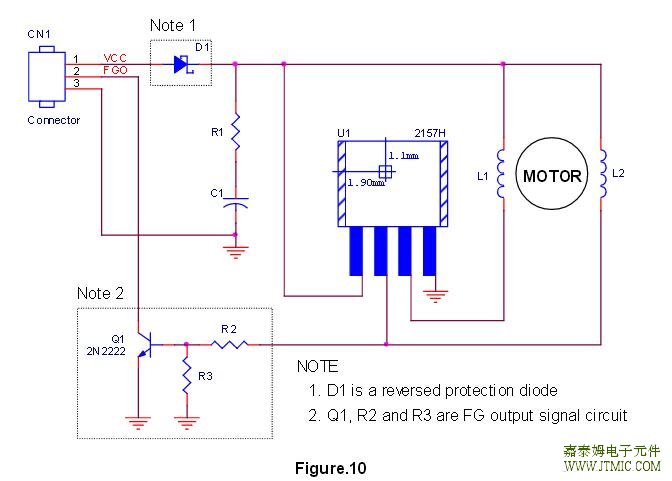

六.电路原理图

七,相关芯片选择指南

DC BRUSHLESS MOTOR DRIVER(ALL-IN-ONE) >> 12V DC FAN App.

Part No.

VIN(Min)

VIN(Max)

IOUT

Coil Type

Operating Temperature

PWM

Soft

POWE

Lock

Auto

Thermal

Magnetic

Package

Status

(V)

(mA)

(℃)

Switch

PWM

Protect

Restart

Protect

Characteristcs

(G)

JTFS200

450

Half Wave

-20 to 85

±65/±80/±100

SIP-4L

JTFS209

450

Half Wave

-20 to 85

●

±65/±80/±100

SIP-4L

JTFS210

2.8

450

Half Wave

-20 to 100

±65/±80/±100

SIP-4L

JTFS276

400

Half Wave

-20 to 85

±60/±80/±100

SIP-4L

JTFS277

400

Half Wave

-20 to 85

±60

SIP-4L

JTFS310

300

Full Wave

-20 to 85

±65/±80

SIP-4L

JTFS319

300

Full Wave

-20 to 85

●

±65/±80/±120

SIP-4L

JTFS220

2.8

450

Half Wave

-20 to 85

±65/±95/±120

SIP-4L

JTFS211

400

Half Wave

-20 to 105

●

±60/±90/±110

SIP-4L

JTFD1157H

600

Half Wave

-20 to 85

●

±20

SIP-4L

JTFD1157AH

2.5

600

Half Wave

-20 to 85

●

±20

SIP-4L

JTFD115C

600

Half Wave

-20 to 85

●

±20

SIP-5L

SOT89-5L

JTFD115M

600

Half Wave

-20 to 85

●

±20

SIP-5L

SOT89-5L

JTFD1257H

400

Full Wave

-20 to 85

●

±20

SIP-4L

JTFD1257AH

2.5

450

Full Wave

-40 to 85

●

±25

SIP-4L

JTFD125CH

2.5

500

Full Wave

-20 to 105

●

±20

SIP-5L

JTFD125MH

2.5

500

Full Wave

-20 to 105

●

±20

SIP-5L

JTFD125CA

2.5

500

Full Wave

-20 to 105

●

±20

SOT89-5L

JTFD125MA

2.5

500

Full Wave

-20 to 105

●

±20

SOT89-5L

DC BRUSHLESS MOTOR DRIVER(ALL-IN-ONE) >> 24V DC FAN App.

Part No.

VIN(Min)

VIN(Max)

IOUT

Coil Type

Operating Temperature

PWM

Soft

POWE

Lock

Auto

Thermal

Magnetic

Package

Status

(V)

(mA)

(℃)

Switch

PWM

Protect

Restart

Protect

Characteristcs

JTFS220

2.8

450

Half Wave

-20 to 85

±65/±95/±110

SIP-4L

JTFD2157H

4.5

350

Half Wave

-40 to 85

●

±25

SIP-4L

JTFD2257H

300

Full Wave

-40 to 85

●

±25

SIP-4L

DC BRUSHLESS MOTOR DRIVER >> 12V DC FAN App.

Part No.

VIN(Min)

VIN(Max)

IOUT

Coil Type

Operating Temperature

PWM

Soft

POWE

Lock

Auto

Thermal

Magnetic

Package

Status

(V)

(mA)

(℃)

Switch

PWM

Protect

Restart

Protect

Characteristcs

JTFD128NX

4.5

500

Full Wave

-20 to 125

●

SOP8(E.P.)

JTFD128MX

4.5

500

Full Wave

-20 to 125

●

SOP8(E.P.)
