五,产品封装图 (Package)

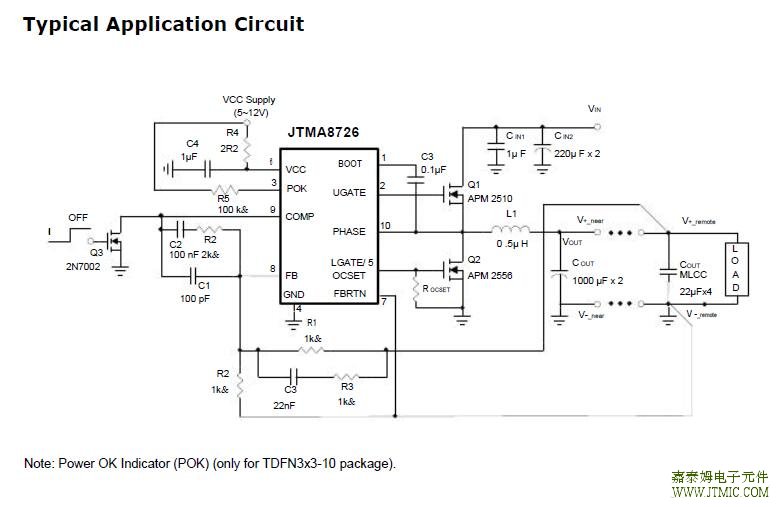

六.电路原理图


七,功能概述
Layout Consideration
In any high switching frequency converter, a correct lay-out is important to ensure proper operation of the
regulator. With power devices switching at 300kHz,the resulting current transient will cause voltage spike across
the interconnecting impedance and parasitic circuit elements. As an example, consider the turn-off transition
of the PWM MOSFET. Before turn-off, the MOSFET is car-rying the full load current. During turn-off, current stops
flowing in the MOSFET and is free-wheeling by the lower MOSFET and parasitic diode. Any parasitic inductance of
the circuit generates a large voltage spike during the switching interval. In general, using short and wide printed
circuit traces should minimize interconnecting imped ances and the magnitude of voltage spike. And signal
and power grounds are to be kept separate till combined using ground plane construction or single point
grounding. Figure 8. illustrates the layout, with bold lines indicating high current paths; these traces must be short
and wide. Components along the bold lines should be placed lose together. Below is a checklist for your layout:
- Keep the switching nodes (UGATE, LGATE, and PHASE)away from sensitive small signal nodes since these
nodes are fast moving signals. Therefore, keep traces to these nodes as short as possible.
- The traces from the gate drivers to the MOSFETs (UG and LG) should be short and wide.
- Place the source of the high-side MOSFET and the drain of the low-side MOSFET as close as possible. Minimiz-
ing the impedance with wide layout plane between the two pads reduces the voltage bounce of the node.
- Decoupling capacitor, compensation component, the resistor dividers, and boot capacitors should be close
their pins. (For example, place the decoupling ceramiccapacitor near the drain of the high-side MOSFET as
close as possible. The bulk capacitors are also placed near the drain).
- The input capacitor should be near the drain of the up-per MOSFET; the output capacitor should be near the
loads. The input capacitor GND should be close to the output capacitor GND and the lower MOSFET GND.
 The drain of the MOSFETs (VIN and PHASE nodes) should be a large plane for heat sinking.
- The ROCSET resistance should be placed near the IC as close as possible.
