一,产品概述(General Description)
       The JTM60N06K uses advanced trench technology and
design to provide excellent RDS(ON) with low gate charge. It
can be used in a wide variety of applications.


二.产品特点(Features)

● VDS = 60V,ID =60A
   RDS(ON) < 12mΩ @ VGS=10V (Typ:10.6mΩ)
● Special process technology for high ESD capability
● High density cell design for ultra low Rdson
● Fully characterized avalanche voltage and current
● Good stability and uniformity with high EAS
● Excellent package for good heat dissipation

三,应用范围 (Applications)

● Power switching application
● Hard switched and High frequency circuits
● Uninterruptible power supply

四,产品封装图 (Package)

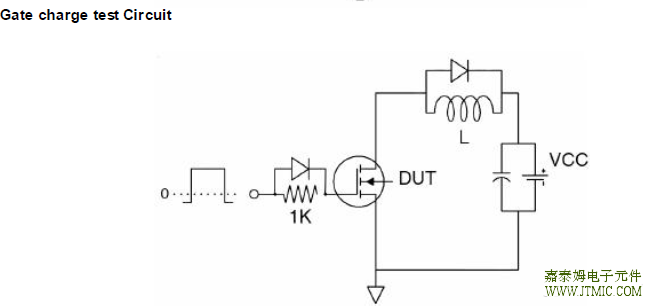

五,电路原理图

六, 产品PCB
(略)
七.产品BOM
(略)
八.产品PDF文档

60N06

九,功能概述
