一,产品概述(General Description) JTMA7311 is a 3A synchronous buck converter with integrated power MOSFETs. The JTMA7311 design with a current-mode control scheme, can convert wide input voltage of 4.5V to 24V to the output voltage adjustable from 0.925V to 17V to provide excellent output voltage regulation. The JTMA7311 is equipped with an automatic PFM/PWM mode operation. At light load, the IC operates in the PFM mode to reduce the switching losses. At heavy load, the IC works in PWM. The JTMA7311 is also equipped with Power-on-reset, softstart, and whole protections (over-temperature, and current-limit) into a single package. This device, available SOP-8P, provides a very compact system solution external components and PCB area 二.产品特点(Features) Wide Input Voltage from 4.5V to 24V 3A Continuous Output Current Adjustable Output Voltage from 0.925V to 17V Intergrated High/Low Side MOSFET PFM/PWM mode Operation Fixed 1.3MHz Switching Frequency Stable with Low ESR Ceramic Output Capacitors Power-On-Reset Detection Programmable Soft-Start Over-Temperature Protection Current-Limit Protection with Frequency Foldback Enable/Shutdown Function Small SOP-8P Package Lead Free and Green Devices Available (RoHS Compliant) 三,应用范围 (Applications) LCD Monitor/TV
Set-Top Box
DSL, Switch HUBNotebook Computer 四.下载产品资料PDF文档

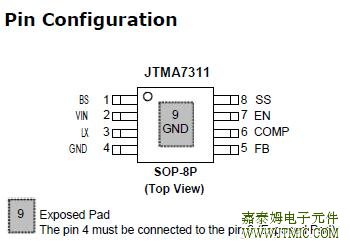

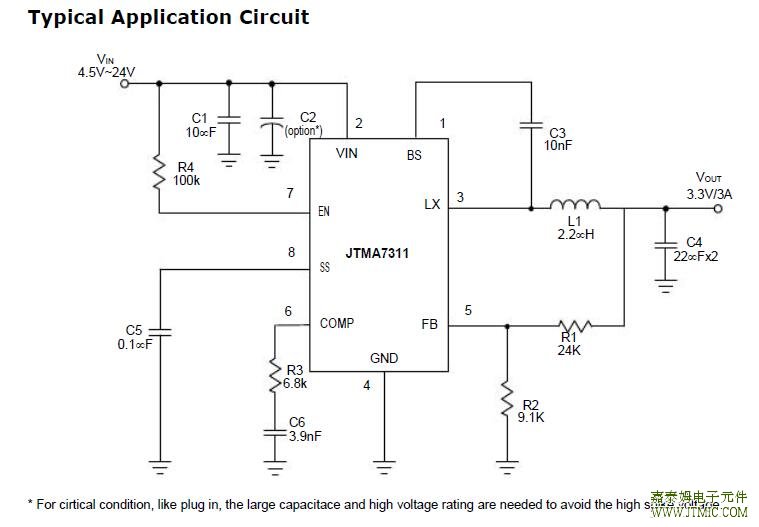

 六.电路原理图  (责任编辑：oumao18) |
