The JTMA8988 is a low RON load switch with controlled turn on. It contains one
N-channel MOSFET that can operate over an input voltage range of 0.8V to 5.5V
annd support maximum continuous current up to 1.5A. The switch is controlled by
an on/off input (EN), which is capable of interfacing directly with low-voltage control
signals. Additional features include a 330Ω on-chip load resistor is added for output
quick discharge when switch is tumed off. A well protection is equipped when the device
enters hard short circuit and thermal shutdown
The JTMA8988 is available in small SOT-26 package with smallest components.
二.产品特点(Features)

Integrated 1.5A Single Channel Load Switch
Input Voltage Range: 0.8V to 5.5V
Low Threshold Control Input
Quick Output Discharge Transistor
Over-Temperature Protection
Over Current Protection
Short Circuit Protection
Open-Drain Fault Flag Output
Low ON-Resistance RON = 40mΩ
Halogen Free Producct
三,应用范围 (Applications)

Telecom Systems
Set-Top-Box
Consumre Electronics
Notebooks / Netbooks
四.技术规格书下载（产品PDF）

JTMA8988

五,产品封装图 (Package)

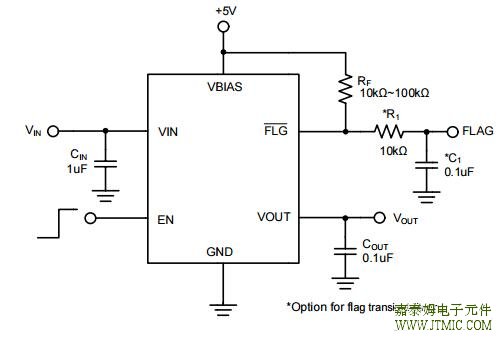

六.电路原理图

七,功能概述

八,相关芯片选择指南

Part Number

Package

Configuration

Vin (min)

Vin (max)

Extra Bias Needed?

Loading (A)

Rdson (mΩ)

Flag

Output discharge

OCP/ SCP

OTP

ADJ SS Time

JTMA8988Y

SOT-26

Single

0.8

5.5

yes

1.5

yes

JTMA8988BY

SOT-26

Single

0.8

5.5

yes

JTMA8937GN2

DFN2x2-8L

Single

0.8

5.5

yes

JTMA8998AMP

ESOP-8L

Single

13.2

yes

JTMA8998BMP

ESOP-8L

Single

13.2

yes

JTMA8991AGN3

DFN-3x3-8L

Single

0.8

5.5

yes

JTMA8910GN3B

DFN-3x2-14L

Dual

0.8

5.5

yes

JTMA8939GN3

DFN3x3-8L

Single

0.8

5.5

yes

JTMA8922AGN3B

DFN3x2-14L

Dual

0.8

5.5

yes
