一,产品概述(General Description)

The JTMA8937 is a small, ultrra-low RON oad switch with controlled urn on. It ontains one N-channel
MOSFET that caan operate oover an inpput voltage rangee of 0.8V to 5.5V annd support maximum
continnuous curren up to 6A. The switch is controlled by an on/off nput (EN), which is capable of
interfaacing directlyy with low-vooltage control signals.Additional featurees include a 300Ω on-chip load
resisttor for outpuut quick disccharge whenn switch isturnedd off, in ordeer to avoid inrush currennt, the rise
time is adjustable by an exteernal ceramic capacitor on thee CT pin.
The JTMA8937 is available in an ultra-smmall, space saving 2mmx2mm 8-pin DFN package with thermal
pad.
二.产品特点(Features)

Integrated 6A Single Channel Load Switch
Input Voltage Range: 0.8V to 5.5V
Ultra-low ON-Resistannce
RON = 200mΩ at VIN=55V (VBIAS=55V)
RON = 21mΩ at VIN=1.8V (VBIASS=5V)
Low Threshold Controol Input
Adjustablee Rise Time
Quick Output Dischargge Transistor
ESD Leveel
2KV for HBM and KV for CDM
Halogen Free Product
三,应用范围 (Applications)

Telecom Systems
▓ Industrial Systems
▓ Set-Top-BBox
Consumeer Electronicss
Notebookks / Netbookss
四.技术规格书下载（产品PDF）

JTMA8937

五,产品封装图 (Package)

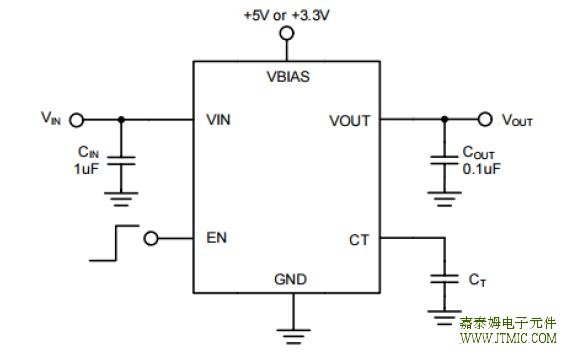

六.电路原理图

七,功能概述

八,相关芯片选择指南

Part Number

Package

Configuration

Vin (min)

Vin (max)

Extra Bias Needed?

Loading (A)

Rdson (mΩ)

Flag

Output discharge

OCP/ SCP

OTP

ADJ SS Time

JTMA8988Y

SOT-26

Single

0.8

5.5

yes

1.5

yes

JTMA8988BY

SOT-26

Single

0.8

5.5

yes

JTMA8937GN2

DFN2x2-8L

Single

0.8

5.5

yes

JTMA8998AMP

ESOP-8L

Single

13.2

yes

JTMA8998BMP

ESOP-8L

Single

13.2

yes

JTMA8991AGN3

DFN-3x3-8L

Single

0.8

5.5

yes

JTMA8910GN3B

DFN-3x2-14L

Dual

0.8

5.5

yes

JTMA8939GN3

DFN3x3-8L

Single

0.8

5.5

yes

JTMA8922AGN3B

DFN3x2-14L

Dual

0.8

5.5

yes
