一,产品概述(General Description)

The JTML7136A is a constant current regulator for driving LEDs with
low quiescent current and low dropout voltage. The current is adjustable
from 10mA to1A with an external resistor.
The JTML7136B is only a controller , and must be connected to an
external NMOS. JTML7136B is an external transistor, is suitable for
applications requiring a high output current . The output current of
JTM7136B can be adjusted by external DC control voltage or PWM
control.Only one external resistor is required to achieve a constant current
LED driver. Soft start , thermal protection and low voltage protection are
also provided.
The driver pin EXT is provided for current and voltage extension. Adding
an external NMOS or NPN transistor to this pin can extend current and
voltage range.

二.产品特点(Features)

JTML7136B is only a controller , and must be
connected to an external NMOS.
The output current of JTM7136B is adjustable
Sink current:10mA to1A adjustable with an external resistor
Current and voltage range extendable by adding an
external NMOS or NPN transistor
Power supply voltage: 2.7-18V
Low drop out voltage: 50mV@1A
Low quiescent current: 80uA
Thermal Shutdown protection：165℃ Soft start
Low voltage protection: 2.5V
Package: JTML7136A: SOT89-5, ESOP8
JTML7136B: SOT23-5

三,应用范围 (Applications)

Power Led driver and controller

四.技术规格书下载（产品PDF）

JTML7136A JTM7136B

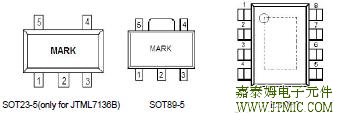

五,产品封装图 (Package)

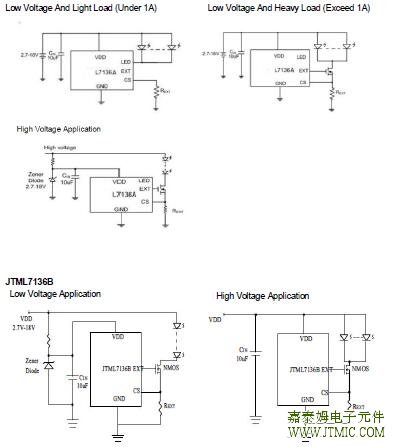

六.电路原理图

七,功能概述

ParaMEter	Symbol	Conditions	Min.	Typ.	Max.	Units
Sink Current	I sink	VDD=3.6V	10		1000	mA
Input Voltage	VDD	I sink=1A	2.7		18	V
CS Voltage	VCS		95	100	105	mV
Sink current accuracy	△ILED/ILED	I sink=1A	-5	-2.5	5	%
Load Regulation	LDR	VLED=0.2V to 3V VDD=3.6V		0.1	2	mA/V
Line Regulation	LNR	VLED= 3V 3.6V≤VDD≤18V		0.4	2	mA/V
Output dropout voltage	V drop	VDD=3.6V, VLED= 0.5V		50	100	mV
Quiescent Current	ISS	VDD=3.6V		80	100	uA
Low Voltage Protection			2.3	2.5	2.7	V
Low voltage hysteresis	Vhys			0.15		V
Maximal EXT Voltage	VEXT	VDD=5.0V,VCS=0V	2.5	3.6	4.5	V
Thermal Shutdown protection	Tsd			165		℃

八,相关芯片选择指南

Part Number	VIN	IOUT	Accu	Application	Package
JTML71XX	2.7-6.0V	350mA	±10%	LED Backlight	SOT89-3
JTML7136	2.7-18V	1000mA	±5%	LED Lighting	SOT89-5
