JTMS9601 IS is an AC-DC primary-sensing off-linecontroller.

1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（产品PDF文档）
5.产品封装图 6.电路原理图 7.功能概述 8.相关产品

一,产品概述(General Description)

JTMS9601 IS is an AC-DC primary-sensing off-linecontroller. There needs only
very few external components to build a low cost switching power supply with this
3-pin controller. The patented Base-Sense technology incorporates the output
driving feature and the input current sensing function together into the shared B/S pin.
二.产品特点(Features)

■Primary sensing eliminates photo-coupler.
■Single-chip controller with the least external components
■Patented Base-Sense technology to sharing the B/S pin
■Self oscillation eases the coil transformer design with less requirement in precision.
■Constant output power
■Tight constant voltage regulation＜±5%.
■Universal AC input range
■Over-voltage protection
三,应用范围 (Applications)

■Isolated AC-DC power regulator,such as USB chargers,power adapters for both handheld
devices and household electrical appliances.
■Isolated LED Power Driver
四.技术规格书下载（产品PDF）

JTMS9601

五,产品封装图 (Package)

Pin	Pin Name
1	VDD
2	B/S
3	VSS

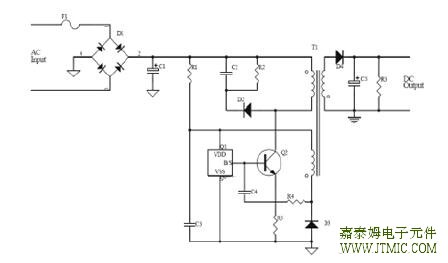

六.电路原理图

七,功能概述

PARAMETER	SYMBOL	LIMITS		UNIT
PARAMETER	SYMBOL	MIN	MAX	UNIT
Supply Voltage
VDD	-0.3	9.5	V
Input Current	IDD	-	10	mA
B/S pin Input voltage	VB	-0.3	VDD+0.3	V
Operating Junction Temperature	TJ	-40	125	℃
Storage Temperature	TSTJ	-55	150	℃

八,相关芯片选择指南

非隔离产品
产品型号	隔离/非隔离	功率因素校正	内置功率管	封装形式	功率范围	封装
JTMS9521	N		MOSFET,500V/0.5A	TO-94	<5W	TO-94
JTMS9522	N		MOSFET,500V0.8A	TO-94	9W	TO-94
JTMS9552A	N		MOSFET,500V/0.8A	SOP-8	<9W	SOP-8
JTMS9553A	N		MOSFET,500V/1A	SOP-8,DIP-7	9-18W	SOP-8&DIP-7
JTMS9554A	N		MOSFET,500V/2A	SOP-8,DIP-7	Up to 36W	SOP-8&DIP-7
JTMS9555A	N		MOSFET,500V/3.0A	DIP-7	Up to 50W	DIP-7
JTMS9556A	N		MOSFET,500V/4.0A	DIP-7	Up to 75W	DIP-7
JTMS9732	N	√	MOSFET,600V/1.5A	SOP-8	1-12W	SOP-8
JTMS9701	N	√	-	SOT23-6	Up to 60W	SOT23-6
JTMS9752	N	√	MOSFET,600V/1.5A	SOP-8	1-12W	SOP-8
JTMS9753	N	√	MOSFET,600V/2.0A	SOP-8,DIP-7	10-20W	SOP&DIP-7
JTMS9702	N	√	-	SOT23-6	Up to 60W	SOT23-6
JTMS9952	N		MOSFET,500V/0.8A	SOP-8	<9W	SOP-8
JTMS9953B	N		MOSFET,500V/1A	SOP-8,DIP-7	9-18W	SOP-8&DIP-7
JTMS9954	N		MOSFET,500V/2A	SOP-8,DIP-7	Up to 36W	SOP-8&DIP-7
