一,产品概述(General Description)
GENERAL DESCRIPTION
    The JTM5456 product is a high integration solution for lithium-ion/polymer battery protection.
    JTM5456 contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits.
    JTM5456 is put into an ultra-small SOT23-5 package and only one external component makes it an ideal solution in limited space of battery pack.
   JTM5456 has all the protection functions required in the battery application including
overcharging, overdischarging, overcurrent and load short circuiting protection etc. The
accurate overcharging detection voltage ensures safe and full utilization charging.
     The low standby current drains little current from the cell while in storage.
The device is not only targeted for digital cellular phones, but also for any other
Li-Ion and Li-Poly battery-powered information appliances requiring long-
term battery life.

二.产品特点(Features)
Protection of Charger Reverse
Connection
· Protection of Battery Cell Reverse
Connection
· Integrate Advanced Power MOSFET
with Equivalent of 16mΩ RDS(ON)
· Ultra-small SOT23-5 Package
· Only One External Capacitor
Required
· Over-temperature Protection
· Overcharge Current Protection
· Two-step Overcurrent Detection:
-Overdischarge Current
-Load Short Circuiting
· Charger Detection Function
· 0V Battery Charging Function
- Delay Times are generated inside
· High-accuracy Voltage Detection
· Low Current Consumption
- Operation Mode: 3.9μ A typ.
- Power-down Mode: 2.2μ A typ.
· RoHS Compliant and Lead (Pb) Free

三,应用范围 (Applications)
One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pack
Power Bank

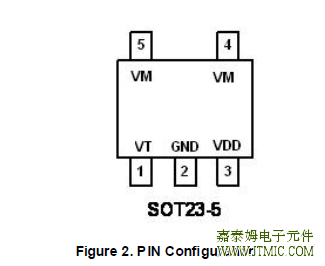

四,产品封装图 (Package)

JTM5456 PIN NUMBER	PIN NAME	PIN DESCRIPTION
1	V T	Test pin；only for vendor not used by application
2	GND	Ground, connect the negative terminal of the battery to this pin
3	VDD	Power Supply
4,5	VM	The negative terminal of the battery pack. The internal FET switch connects this terminal to GND
