一,产品概述(General Description)
The JTM6209 series are highly accurate, low noise,LDO Voltage Regulators .On chip trimming adjusts the reference/output voltage to within ±2% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The current limiter’s feedback circuit also operates as a short protect for the
output current limiter and the output pin. The CE function allows the output of regulator
to be turned off, resulting in greatly reduced power consumption. The JTM6209 series can operate with up to 18V input.

二.产品特点(Features)
1.）Maximum Output Current: 400mA
2.）Dropout Voltage:104mV@ IOUT =100mA
3.）Operating Voltage Range: 2.5V～18V
4.）Highly Accuracy: ±2 ％
5.）Adjustable Output Voltage Option
6.）Standby Current: 60uA（TYP.）
7.）Line Regulation: 30mV（TYP.）
8.）Temperature Stability≤0.5%
9.）Thermal Shutdown Protection：164℃
10.）Packages:SOT23-5

三,应用范围 (Applications)
Consumer and Industrial Equipment Point of Regulation
Switching Power Supply Post Regulation
Hard Drive Controllers
Battery Chargers

四.下载产品资料PDF文档

JTM6209

五,产品封装图 (Package)

Pin Number	Pin Name	Functions
SOT23-5	Pin Name	Functions
1
VIN	Power Input
2	VSS	Ground
3	CE	ON / OFF Control
4	NC	No Connect
5	VOUT	Output

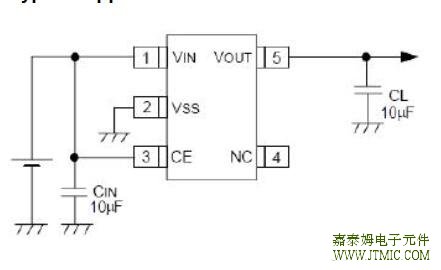

六.电路原理图

七,功能概述

Parameter	Symbol	Conditions	Min.	Typ.	Max.	Units
Output Voltage	VOUT(E) (Note 2)	IOUT=30mA, VIN= VOUT+1V	X 0.98	VOUT (T) (Note 1)	X 1.02	V
Maximum Output Current	IOUTMAX	VIN= VOUT+1V		400		mA
Load Regulation	∆VOUT	VIN= VOUT+1V , 1mA≤IOUT≤100mA		8		mV
Dropout Voltage (Note 1)	VDIF1	IOUT =100mA		130		mV
Dropout Voltage (Note 1)	VDIF2	IOUT =200mA		260		mV
Supply Current	ISS	VIN= VOUT+1V		60		μA
Stand-by Current	ICEL	VCE＝0V		0		μA
Line Regulation	∆VOUT	IOUT =30mA VOUT+1V ≤VIN≤18V		20		mV
CE “High” Voltage	VCEH	Start up	1.20			V
CE “Low” Voltage	VCEL	Shut down			0.8	V
Short-circuit Current	ISHORT	VIN= VOUT+1V, VCE＝VIN, VOUT＝0V		60		mA
Thermal Shutdown Protection	Tsd	IOUT=1mA, VIN= VOUT+1V		164		℃
Over Current Protection	Ilimit	VIN= 4.3V		550		mA
