目录 1. 产品概述 2. 产品特点 3. 应用范围 4. 下载产品资料PDF文档 5. 产品封装图 6. 电路原理图 7. 功能概述 8 . 相关产品 一 , 产品概述( General Description) The JTMA7181 is designed to drive two high-side P-ch
|
目录
一,产品概述(General Description)
The JTMA7181 is designed to drive two high-side P-chan-nel
MOSFETs and two low-side N-channel MOSFETs in a full-bridge
configuration. The outputs are independently controlled by PWM1
and PWM2 input signals.The other features include VCC power-
on-reset and ther-mal shutdown.
二.产品特点(Features)
1.)Wide Input Voltage Range: 4.5V to 13.2V
2.)Drives a Full-Bridge Inverter(High-Side P-
3.)Channel MOSFETs and Low-Side N-Channel MOSFETs)
4.)Thermal Shutdown Protection
5.)VCC Power-On-Reset SOP-8 Package
6.)Lead Free and Green Devices Available
三,应用范围 (Applications)
LCD Monitor and LCD TV
四.下载产品资料PDF文档

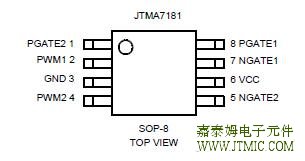

五,产品封装图 (Package)
FUNCTION
|
PIN |
FUNCTION |
|
NO. |
NAME |
|
1 |
|
PGATE2 |
High-Side Gate Driver Output for P-channel MOSFET of Channel 2. |
|
2 |
PWM1 |
Input PWM Signal for Channel 1. |
|
3 |
GND |
Ground. |
|
4 |
PWM2 |
Input PWM Signal for Channel 2. |
|
5 |
NGATE2 |
Low-Side Gate Driver Output for N-channel MOSFET of Channel 2. |
|
6 |
VCC |
Power Supply Input. |
|
7 |
NGATE1 |
Low-Side Gate Driver Output for N-channel MOSFET of Channel 1. |
|
8 |
PGATE1 |
High-Side Gate Driver Output for P-channel MOSFET of Channel 1. |
