The JTMA8843 is an efficient, precise dual-channel CMOS LDO

1.产品概述 2.产品特点 3.应用范围 4.技术规格书下载（产品PDF文档）
5.产品封装图 6.电路原理图 7.功能概述 8.相关产品

一,产品概述(General Description)

The JTMA8843 is an efficient, precise dual-channel CMOS LDO regulator optimized for
ultra-low-quiescent applications.Regulators output1 and output2 are capable of sourcing
600mA of output current. The regulators are stable with output capacitors as low as 1uF,
including current limit, thermal shutdown protection, fast transient response, low dropout
voltage, high output accuracy, current limiting protection, and high ripple rejection ratio.
The JTMA8843 regulators are able to support individual On/Off function.
The JTMA8843 regulators are available in used ESOP-8 package.
二.产品特点(Features)

Input Voltage Range :
Channel 1 : 4.2V to 6V
Channel 2 : 3.2V to 6V
Low Quiescent Current is 30uA/per Channel (typ.)
Tight Load and Line Regulation
Fast Transient Response
Current Limit and Thermal Shutdown Protection
Only low-ESR Ceramic Capacitors Required
for Stability
Available in the ESOP-8 Pb-Free Package
Halogen Free Product
三,应用范围 (Applications)

四.技术规格书下载（产品PDF）

JTMA8843

五,产品封装图 (Package)

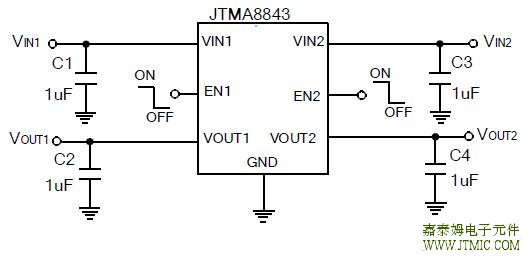

六.电路原理图

七,功能概述

VIN1, VIN2 Pin Voltage (VIN1,2) ----------------------------6.5V

Output Voltage (VOUT1/VOUT2) ---------------------------- GND - 0.3 to VIN + 0.3V

Enable Voltage (VEN1/VEN2) ------------------------------GND - 0.3 to VIN + 0.3V

Power Dissipation (PD) ------------------------------------ Internally Limited
Storage Temperature Range (TST) --------------------- -65°C To 150°C
Operating Junction Temperature Range (T OPJ) ----- -40°C To + 125°C

Junction Temperature (TJ) --------------------------------40°C To + 150°C
Thermal Resistance from Junction to case (R thjc)15°C/W

Thermal Resistance from Junction to ambient (R thja)Note45°C/W
八,相关芯片选择指南

Part Number	Package	Vin (max)	Vout	Max. Current (A)	Current Limit (A)	Quiescent Current Typ. (uA)
JTMA8862U5	SC-70-5L	6	3.3V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V,1.0V	0.6	600	30
JTMA8862Y5	SOT-23-5L	6	3.3V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V,1.0V	0.6	600	30
JTMA8862K	SOT-223	6	3.3V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V,1.0V	0.6	600	30
JTMA8862G	SOT-89	6	3.3V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V,1.0V	0.6	600	30
JTMA8862H	TO-252	6	3.3V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V,1.0V	0.6	600	30
JTMA1205Y5	SOT-23-5L	10	ADJ,3.6V,3.3V,3.0V,2.8V,2.5V,1.8V	0.3	0.42	5
JTMA1209M	SO-8	10	ADJ	1	1.4
JTMA8800A-XXY5P	SOT-23-5L	6	5.0,3.6V,3.3V,3.1V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V	0.3	0.3	30
JTMA8800A-XXTY5P	TSOT-23-5L	6	5.0,3.6V,3.3V,3.1V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V	0.3	0.3	30
JTMA8800N	SOT-23	6	3.6V,3.3V,3.0V,2.8V,2.5V,1.8V,1.5V	0.3	0.3	30
JTMA8800G	SOT-89	6	3.6V,3.3V,3.0V,2.8V,2.5V,1.8V,1.5V	0.3	0.3	30
JTMA8805K	SOT-223	6	3.3V,3.0V,2.8V,2.5V,2.0V,1.8V,1.5V	0.6	0.6	30
JTMA8805G	SOT-89	6	3.3V,3.0V,2.8V,2.5V,2.0V,1.8V,1.5V	0.6	0.6	30
JTMA8805N	SOT-23	6	3.3V,3.0V,2.8V,2.5V,2.0V,1.8V,1.5V	0.6	0.6	30
APU8836Y5	SOT-23-5L	10	ADJ	0.3	0.32	5
APU8850Y5	SOT-23-5L	27	ADJ,5.0V,3.3V,3.0V,2.8V,2.5V,1.8V	0.15	0.2	250
APU8850G	SOT-89	27	ADJ,5.0V,3.3V,3.0V,2.8V,2.5V,1.8V	0.15	0.2	250
APU8850MP	ESOP-8	27	ADJ,5.0V,3.3V,3.0V,2.8V,2.5V,1.8V	0.15	0.2	250
APU8850TY5	TSOT-23-5L	27	ADJ,5.0V,3.3V,3.0V,2.8V,2.5V,1.8V	0.15	0.2	250
APU8850U	J-Lead 2021-8	27	ADJ,5.0V,3.3V,3.0V,2.8V,2.5V,1.8V	0.15	0.2	250
JTMA8862Y5	SOT-23-5L	6	3.3V,3.1V,3.0V,2.8V,2.5V,1.8V,1.5V,1.2V,1.0V	0.6	0.6	55
JTMA8865N	SOT-23	6	3.3V~1.5V,1.2V (0.1V Steps)	0.3	0.3	30
JTMA8865Y5	SOT-23-5L	6	3.3V~1.5V,1.2V (0.1V Steps)	0.3	0.3	30
JTMA8865U4	SC-70-4L	6	3.3V~1.5V,1.2V (0.1V Steps)	0.3	0.3	30
JTMA8865U5	SC-70-5L	6	3.3V~1.5V,1.2V (0.1V Steps)	0.3	0.3	30
JTMA8865TY5	TSOT-23-5L	6	3.3V~1.5V,1.2V (0.1V Steps)	0.3	0.3	30
JTMA8866Y5	SOT-23-5L	6	ADJ	0.6	0.6	40
JTMA8866U5	SC-70-5L	6	ADJ	0.6	0.6	40
JTMA8866M	SO-8	6	ADJ	0.6	0.6	40
JTMA8867Y5	SOT-23-5L	6	ADJ	0.3	0.3	40
JTMA8981GN3-A	DFN-3x3-10L	5.5	ADJ	3	3.1
