一,产品概述(General Description)
      The JTM2325A/JTM2326 are constant current LED regulators with high current accuracy which applies to single stage step-down power factor corrected LED drivers. 600V power MOSFET is integrated, which can significantly simplify the design of LED lighting system.
High accuracy of output current is achieved by sampling the output current directly. Critical
conduction mode operation reduces the switching losses and largely increases the efficiency.
The JTM2325A/JTM2326 is supplied from the output directly, and auxiliary winding is not
needed.The JTM2325A/JTM2326 has multi-protection functions which largely enhance the safety and reliability of the system, including VDD over-voltage protection, VDD UVLO, short-circuit protection, LED open protection, cycle-by-cycle current limit and over-temperature protection.
    The JTM2325A/JTM2326 available in SOP-8 & DIP-7 packages.

二.产品特点(Features)
Active PFC for High power factor and low THD
·No auxiliary winding
·600V high voltage MOSFET integrated
·±3% LED output current accuracy
·Excellent line and load regulation
·Critical conduction mode
System efficiency up to 95%
·Ultra low start up & operating current
·Cycle-by-cycle current limit
·LED short protection
·LED open protection
·Over-temperature protection

三,应用范围 (Applications)

四.下载产品资料PDF文档

JTM2325A

五,产品封装图 (Package)

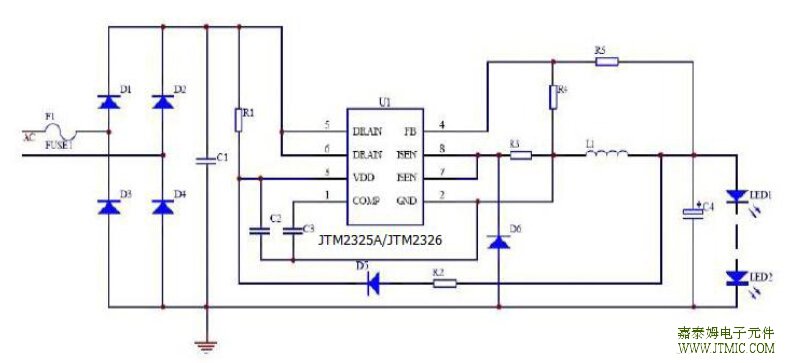

六.电路原理图

七,功能概述

Functional Description

The JTM2325A/JTM2326 is a constant current LED regulator which applies to non-isolation step-down LED (责任编辑：oumao18)
