The JTMA8512 is a monolithic switching charger for 2-series

JTMA8512

The JTMA8512 is a monolithic switching charger for 2-series Li-ion cells battery, it achieves up to 2A
charge current with voltage mode PWM step- down (buck) switching architecture.
JTMA8512 regulates the battery voltage and charge current with CV (constant voltage) and CC (constant
current) loops. Fault condition includes thermal shutdown、time out and output short. Other safety features
include battery temperature monitoring and charge status indication.
The JTMA8512 is available in 14-pin TSSOP package.

■ Features
● 100% Maximum Duty Cycle
● 0.3% Charge Voltage Accuracy
● Low 10uA Reverse Battery Drain Current
● Programmable Charge Current Up To 2A
● Fixed 400 kHz Frequency
● Build-in Battery Detection
● Suitable For 2-Cell Li-Ion Batteries
● Automatic Battery Recharge
● Soft Start
● Battery Temperature Monitoring
● Thermal Shutdown and Protection
● Status Indication
● 18V Maximum Input Voltage Rating
● Ambient Temperature Range: -20℃～70℃
● 14-Lead TSSOP Package Available

■ Applications
● Handheld Products
● Portable Equipment
● Distributed Power Systems
● Portable DVD Players
● Notebook
● Chargers for 2-cell Lion Batteries

■ Pin Configuration

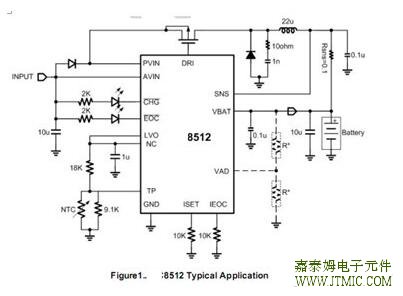

■ Typical Application Circuit
