The JTM3400,JTM3400B,JTM3400C,JTM3400PR is high efficiency s(2)

(2)JTM3400PR

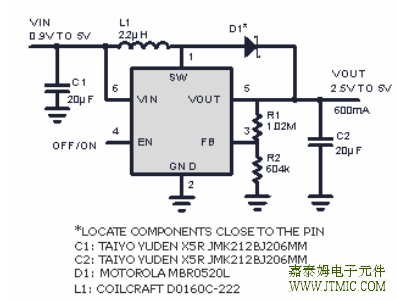

五,电路原理图

六.产品PDF文档

JTM3400

JTM3400PR

七,功能概述

Low ESR (equivalent series resistance) capacitors should be used to minimize the output
voltage ripple. Multilayer ceramic capacitors are an excellent choice as they have extremely
low ESR and are available in small footprints. A 4.7µF to 20µF output capacitor is sufficient
for most applications. Larger values up to 22µF may be used to obtain extremely low output
voltage ripple and improve transient response. An additional phase lead capacitor may be
required with output capacitors larger than 10µF to maintain acceptable phase margin. X5R
and X7R dielectric materials are preferred for their ability to maintain capacitance over wide
voltage and temperature ranges.

Low ESR input capacitors reduce input switching noise and reduce the peak current drawn
from the battery. It follows that ceramic capacitors are also a good choice for input
decoupling and should be located as close as possible to the device. A 10µF input capacitor
is sufficient for virtually any application. Larger values may be used without limitations. Table
2 shows a list of several ceramic capacitor manufacturers. Consult the manufacturers directly
for detailed information on their entire selection of ceramic capacitors.
八,相关产品

单N沟道低压MOS场效应管

型号	沟道	VDS	VGS	VTH	ID	IDM	RDS(on)	封装	状态	直接替代型号
		(Max)			(Max)		(Max)
JTM2302/A	N沟道	20V	10V	0.75V	3A	10A	30mΩ	SOT23	量产	Si2302/AP2302/XP151A
								SOT23-3L		APM2314/IRLML2502
JTM2302B	N沟道	20V	12V	0.85V	2.5A	10A	46mΩ	SOT23	量产	Si2302/AP2302/XP151A
										APM2314/IRLML2502
JTM2306/A	N沟道	30V	12V	0.9V	5.8A	22A	25mΩ	SOT23	量产	AP2306/SI2306
								SOT23-3L		APM2306/WNM2306
JTM2300/B	N沟道	20V	12V	0.65V	4.5A	13.5A	22mΩ	SOT23	量产	AP2312/SI2312
								SOT23-3L		SI2300/AP2300
JTM2312/B	N沟道	20V	12V	0.65V	4.5A	13.5A	22mΩ	SOT23	量产	AP2312/SI2312
								SOT23-3L		SI2300/AP2300
JTM2314/B	N沟道	20V	12V	0.65V	4.5A	13.5A	22mΩ	SOT23	量产	AP2314/SI2314
								SOT23-3L		SI2312/AP2312
JTM3400/B	N沟道	30V	12V	0.9V	5.8A	30A	25mΩ	SOT23	量产	AO3400/AO3402/AP2306
								SOT23-3L		SI2306/APM2306/WNM2306
JTM3400C	N沟道	30V	20V	1.5V	3.6A	15A	40mΩ	SOT23	量产	AO3400/AO3402/AO3406/AP2306
										SI2306/APM2306/WNM2306
JTM3406/B	N沟道	30V	20V	1.6V	5.8A	20A	25mΩ	SOT23	量产	AO3406/AP2306
								SOT23-3L		SI2306/APM2306/WNM2306
JTM3414/B	N沟道	20V	10V	0.75V	3.0A	10A	30mΩ	SOT23	量产	AO3414
								SOT23-3L
JTM3416E	N沟道	20V	12V	0.7V	6.0A	30A	19mΩ	SOT23-3L	量产	AO3416
	带ESD保护
JTM3420/B	N沟道	20V	12V	0.65V	4.5A	13.5A	22mΩ	SOT23	量产	AO3420/SI2300
								SOT23-3L		SI2312/AP2300
JTM2318	N沟道	40V	20V	2.0V	4.0A	20A	32mΩ	SOT23-3L	量产	Si2318
JTM6400	N沟道	30V	12V	0.9V	6.9A	30A	25mΩ	SOT23-6L	量产	AO6400/SI3456/AP2602/AO6404
JTM7002	N沟道	60V	20V	1.7V	0.115A	0.8A	1.3Ω	SOT23	量产	2N7002/BSS138/FDV301N
JTM2310	N沟道	60V	20V	1.4V	3A	10A	105mΩ	SOT23-3L	量产	AP2310GN/APM2360A/AO3422
										IRFL014/UT3N06
JTM3422	N沟道	60V	20V	1.4V	3A	10A	105mΩ	SOT23-3L	量产	AO3422/AP2310GN/APM2360A
										CES2362/VN3205/VN2204
										IRFL014/UT3N06
JTM2N10MR	N沟道	100V	20V	1.8V	2A	5A	210mΩ	SOT23-3L	量产
JTM2324E	N沟道	100V	20V	1V	2.7A	10A	140mΩ	SOT23-3L	量产	Si2324/Si2328
	带ESD保护									Si2392/AO3442
JTM4410	N沟道	30V	20V	1.6V	10A	50A	7.5mΩ	SOP8	量产	AO4410/AO4403/APM4410
										CEM4410/AP4410/FDS4410
										IRF7832/IRF7805Z
JTM4412	N沟道	30V	20V	1.0V	7A	30A	22mΩ	SOP8	量产	AO4412/APM4412/CEM4412
										AP4412/FDS4412/AO4414/ME4414
JTM4430	N沟道	30V	20V	1.6V	18A	50A	7.5mΩ	SOP8	量产	AO4430/APM4430/CEM4430
										AP4430/FDS4430/SI4166
JTM4480	N沟道	40V	20V	2.0V	20A	50A	16mΩ	SOP8	量产	AO4480/AO4240/IRF7842
										Si4840BDY/Si4124DY
JTM4440	N沟道	60V	20V	2V	4.5A	20A	45mΩ	SOP8	量产	AO4440/AP9971/STS5NF60L
JTM4486E	N沟道	100V	20V	2V	3.5A	20A	85mΩ	SOP8	量产	AO4486
	带ESD保护
JTM4488	N沟道	150V	20V	3.2V	5.2A	42A	31mΩ	SOP8	量产	AO4488
JTM4490	N沟道	200V	20V	3.0V	3.9A	30A	56mΩ	SOP8	量产	AO4490
