一,产品概述(General Description)
        JTM9901 is a spacing saving single chip lithium-ion/polymer battery protection IC.Integrating power MOSFET and only two external components makes the protection board highly compact. JTM9901 has full protection including over charging voltage protection, over discharging protection, over current protection, short protection and over temperature protection. The very low standby
current drains little current from the cell whilein storage. JTM9901 is available in 8 PIN SOP8_EPAD package

二.产品特点(Features)
Integrate low Rdson Power MOSFET
SOP8_EPAD Package
Over-temperature Protection
Two-steps Over current protection
High-accuracy Voltage Detection
Low Current Consumption
Operation Mode: 5.2μA typ.
Power-down Mode: 3μA typ.
RoHS Compliant and Lead (Pb) Free

三,应用范围 (Applications)
One-Cell Lithium-ion Battery Pack
Lithium-Polymer Battery Pack

四.下载产品资料PDF文档

JTM9901

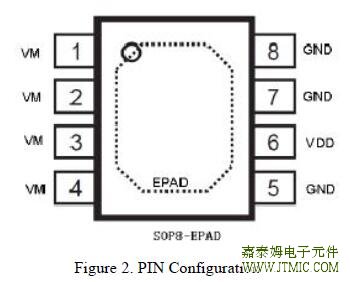

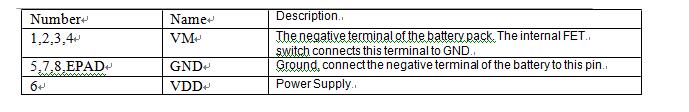

五,产品封装图 (Package)

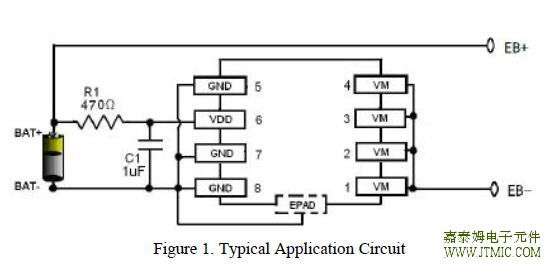

六.电路原理图


七,功能概述
Overcharge Protection
When the voltage of the battery cell exceeds the overcharge protection voltage (VOCV) beyond the
overcharge delay time (tOCV) period, charging is inhibited by turning off power MOSFET. The
overcharge condition is released in two cases:
1. The voltage of the battery cell becomes lower than the overcharge release voltage (VOCR)
     through self-discharge.
2. The voltage of the battery cell falls below the overcharge protection voltage (VOCV) and a load
is connected. When the battery voltage is above VOCV, the overcharge condition will not release
even a load is connected to the pack.

Overdischarge Protection
When the voltage of the battery cell goes below the overdischarge protection voltage (VODV)
beyond the overdischarge delay time (tODV) period, discharging is inhibited. Inhibition of
discharging is immediately released when the voltage of the battery cell becomes higher than
overdischarge release voltage (VODR).

Overcurrent Protection
When the discharging current becomes higherthan a specified Overdischarge Current and
beyond over discharge current delay time period, discharging is inhibited. Inhibition of
discharging is immediately released when theload is released or the impedance between EB+
and EB- is larger than 500kΩ. The JTM9901provides three over current detection levels (8A,
14A and 36A) with three over current delay time
八,相关产品

小过放电流/二合一锂电保护IC
型号	耐压	工作电流	过充电压	过充	过放电压	过放	过放	过流保护	短路保护	封装	替代型号
				释放电压		释放电压	自恢复
JTM5418	1.5-6.0V	2.0uA	4.3V	4.1V	2.4V	3.0V	OK	OK/3A	OK	SOT-25	XB5358A
JTM5459	6.0V	2.8uA	4.3V	4.1V	2.4V	3.0V	OK	OK/3A	OK	SOT-25	XB5358A
JTM5406	10.0V	2.8uA	4.3V	4.1V	2.4V	3.0V	OK	OK/2.5A	OK	SOT-26
JTM5403	10.0V	2.8uA	4.3V	4.1V	2.4V	3.0V	OK	OK/2.5A	OK	TSSOP8
JTM5453	6.0V	2.8uA	4.425V	4.25V	2.4V	3.0V	OK	OK/3A	OK	SOT-25	4.35V锂电池保护应用
JTM5451	6.0V	2.8uA	4.3V	4.1V	2.8V	3.0V	OK	OK/1A	OK	SOT-25	小过放电流保护应用
大过放电流/二合一锂电保护IC
型号	耐压	工作电流	过充电压	过充	过放电压	过放	过放	过流保护	短路保护	封装	替代型号
				释放电压		释放电压	自恢复
JTM9901	6.0V	5.2uA	4.28V	4.1V	2.4V	3.0V	OK	OK/8A	OK	ESOP8	DW01A+AO8205*2
JTM9902A	6.0V	6.0uA	4.25V	4.1V	2.9V	3.0V	OK	OK/10A	OK	ESOP8	DW01A+AO8205*3
JTM9902B	6.0V	6.0uA	4.25V	4.1V	2.5V	3.0V	OK	OK/10A	OK	ESOP8	DW01A+AO8205*3
JTM9902C	6.0V	6.0uA	4.3V	4.1V	2.4V	3.0V	OK	OK/10A	OK	ESOP8	DW01A+AO8205*3
JTM9902D	6.0V	6.0uA	4.425V	4.25V	2.4V	3.0V	OK	OK/10A	OK	ESOP8	4.35V锂电池保护应用
JTM9903	6.0V	2.8uA	4.425V	4.15V	2.5V	3.0V	OK	OK/5A	OK	ESOP8	DW01A+AO8205*2
型号	工作电压	功耗	驱动电流	输出结构	检测点个数	充电检测点	放电检测点	检测精度	封装
JTM1160	2.0V-6.5V	8uA	5mA	NMOS开漏	D1--D4	3.4V,3.55V,	3.8V,3.64V,	2%	SOT-26
						3.7V,3.87V	3.5V,3.1V
型号	工作电压	功耗	检测参数	通信协议	封装	代替型号
JTM6002	2.5V-5.5V	120uA	电压/电流/电量	SMBUS/SWI	DFN-12	BQ27541
型号	工作电压	雾化片	最大充	静态电流	输出电压	充电检测精度	保护功能	封装
		最大输	电电流
		出电流
JTM8001	4.5V-6.0V	2A	100mA	3uA	3.6V	4.2V ± 1%	OCP,UVLO,OTP	SOT-25
JTM8004	3.3V-4.2V	2.5A	500mA	3uA	3.6V	4.2V ± 1%	OCP,UVLO,OTP	ESOP-8
耳机线控器IC
型号	工作电压	工作电流	静态电流	振荡频率	振荡占空比	封装
JTM5268	1.5V-5.0V	60uA	3uA	4MHz	50%	SOT-26
蓝牙自拍杆IC
型号	工作电压	工作电流	接口类型	支持系统	封装
JTM5269	1.5V-5.0V	60uA	3.5mm 音频拍照	适用于 ios5.01 以上版本及安卓 4.2.2 以上系统	SOT-26
苹果数据线IC
型号	工作电压	工作电流	内置/外置MOS	接口类型	支持系统	封装
JTM5258	2.2-5.5V	3mA	外置MOS	8 Pin Lighting	iOS 6.0，iOS 6.01，iOS 6.1，iOS 6.12	SOT23-6L
					iOS 7.04及后续升级系统
					iOS 7.1，iOS 7.1.1
JTM5259	2.2-5.5V	3mA	内置MOS	8 Pin Lighting	iOS 6.0，iOS 6.01，iOS 6.1，iOS 6.12	SOT23-6L
					iOS 7.04及后续升级系统
					iOS 7.1，iOS 7.1.1
型号	极性	Vceo	Vces	Vebo	Ic	Icp	Ib	Ibp	Pc	封装	状态
JTM13001	NPN	400V	600V	9V	0.5A	1A	_	_	1W	TO-92	量产
JTM13003	NPN	400V	600V	9V	1.5A	3A	_	_	1W	TO-92	量产
									20W	TO-126
									40W	TO-220
JTM13005	NPN	400V	700V	9V	4A	8A	2A	4A	75W	TO-220	量产
JTM13007	NPN	400V	700V	9V	8A	16A	4A	8A	80W	TO-220	量产
JTM13009	NPN	400V	700V	9V	12A	24A	6A	12A	120W	TO-220	量产
