一,产品概述(General Description)
Synchronous Rectification: Up to 95%
Efficiency
Single Inductor
Quiescent Current 3mA (50uA low power
mode: mode pin high)
Up to 700mA Continuous Output Current
2.2V to 5V Input and Output Voltage Range
No Schottky Diodes Required
Shutdown current: IQ 1µA
Package: Small Thermally Enhanced
DFN3*3-10L or MSOP-10L

二.产品特点(Features)
        The JTM3441 is high efficiency, fixed frequency,Buck-Boost DC/DC constant output currentconverter which operates from input voltages above, below or equal to the output voltage. The devices are suitable for single lithium-ion,multicell alkaline or NiMH applications where theoutput voltage is within the battery voltage
range.
        Other features include a below 1µA shutdown current, thermal shutdown and current limit. The JTM3441 converter is available in the 10-pin thermally enhanced DFN3*3-10L or MSOP-10L
packages.

三,应用范围 (Applications)
Digital cameras and Wireless handsets
Palmtop computers
Handheld instruments
MP3/MP4 players
Driver LED:1W/3W

四.下载产品资料PDF文档

JTM3441

五,产品封装图 (Package)

PIN NUMBER DFN3*3-10L or MSOP-10L	PIN NAME	FUNCTION
1	VC1	Frequency compensation
2	GND	Ground
3	S1	Switch 1
4	S2	Switch 2
5	GND	Ground
6	VOUT	Output
7	VIN	Input
8	EN	ON/OFF Control (High Enable)
9	VFB	Feedback
10	VC	Frequency compensation

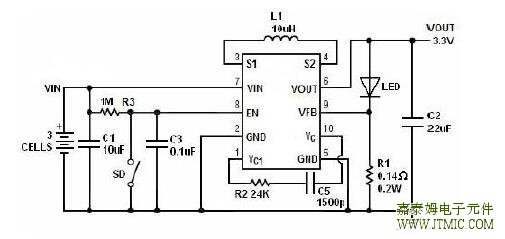

六.电路原理图


七,功能概述
Applications Information
The JTM3441 employs a buck-boost DC/DC converter to generate the output voltage required to drive a
high current LED. This architecture permits high efficiency, low noise operation at input voltages above,
below or equal to the output voltage by properly phasing four internal power switches. The error amp
output voltage on the VC pin determines the duty cycle of the switches.
Since the VC pin is a filtered signal, it provides rejection of frequencies well below the factory trimmed
switching frequency of 1.1MHz. The low RDS (ON), low gate charge synchronous switches provide high
frequency pulse width modulation control at high efficiency.

Undervoltage Lockout
To prevent operation of the power switches at high RDS(ON), an undervoltage lockout is incorporated on
the JTM3441. When the input supply voltage drops below approximately 1.9V, power switches and all
control circuitry are turned off except for the undervoltage block, which draws a few microamperes.
