一,产品概述(General Description)
        The JTM9804 is a monolithic high voltage switching regulator with PFM that is specifically designed to operate from a 24V~80V DC supply.
       The JTM9804 is a high efficiency LED driver switching regulator. The LED string is driven at DC constant current rather than constant voltage, thus providing constant current output and enhanced reliability.

二.产品特点(Features)
1.)Wide 24V to 80V Input Voltage Range
2.)0.2V current sense voltage reference.
3.)Directly drive 3~8 series LED.
4.)Excellent line and load regulation.
5.)High efficiency up to 96%.
6.)Internal optimize power HV-MOSFET.
7.)Built in thermal shutdown function.
8.)Built in UVLO function.
9.)Built in current limiting function.
10.)Built in LED open & short protection.
11.)Built in soft-start circuit.
12.)Available in TO252-5L package

三,应用范围 (Applications)
EBIKE LED Lighting
LED Lighting & LED LAMP
General purpose lighting

四.下载产品资料PDF文档

JTM9804

五,产品封装图 (Package)

Pin Number	Pin Name	Description
1	VDD	The chip supply voltage.
2	CSN	Current Sense Negative Terminal.
3	VIN	Input high voltage Pin. (Operation voltage 24V~ 80V)
4	CSP	Current Sense Positive Terminal.
5	SW	Output Switching Pin.

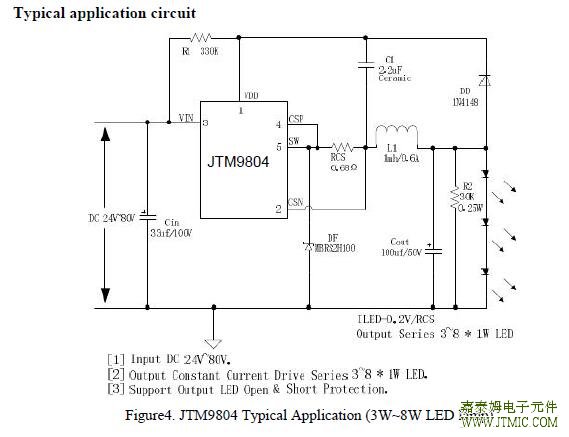

六.电路原理图

七,功能概述

Parameter	Symbol	Value	Unit
Input Voltage	Vin	-0.3 to 90	V
Power Dissipation	PD	Internally limited	mW
Thermal Resistance (TO252-5L) (Junction to Ambient, No Heatsink, Free Air)	RJA	50	ºC/W
Operating Junction Temperature	TJ	-40 to 125	ºC
Storage Temperature	TSTG	-65 to 150	ºC
Lead Temperature (Soldering, 10 sec)	TLEAD	260	ºC
ESD (HBM)		3000	V
